DVEHF2800S - HIGH RELIABILITY HYBRID DC-DC CONVERTERS

Description

The DVETR series of high reliability DC-DC converters is operable over the full military (-55 °C to www.DataSheet4U.com +125 °C) temperature range with no power derating.

Unique to the DVETR series is a fault tolerant magnetic feedback circuit.

Features

  • High Reliability Very Low Output Noise Wide Input Voltage Range: 15 to 50 Volts per MIL-STD-704 Up to 40 Watts Output Power Fault Tolerant Magnetic Feedback Circuit NO Use of Optoisolators Undervoltage Lockout Indefinite Short Circuit Protection Current Limit Protection Industry Standard Pinout High.

📥 Download Datasheet

Datasheet Details

Part number DVEHF2800S
Manufacturer Delta Electronics
File Size 363.17 KB
Description HIGH RELIABILITY HYBRID DC-DC CONVERTERS
Datasheet download datasheet DVEHF2800S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Delta Electronics

Part Number Description
DVEHF2800D HIGH RELIABILITY HYBRID DC-DC CONVERTERS
DVEHF2800T HIGH RELIABILITY HYBRID DC-DC CONVERTERS

Full PDF Text Transcription

Click to expand full text

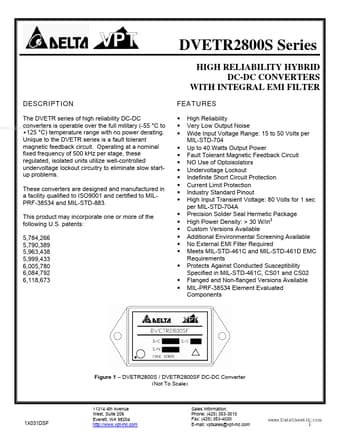

DVETR2800S Series HIGH RELIABILITY HYBRID DC-DC CONVERTERS WITH INTEGRAL EMI FILTER DESCRIPTION The DVETR series of high reliability DC-DC converters is operable over the full military (-55 °C to www.DataSheet4U.com +125 °C) temperature range with no power derating. Unique to the DVETR series is a fault tolerant magnetic feedback circuit. Operating at a nominal fixed frequency of 500 kHz per stage, these regulated, isolated units utilize well-controlled undervoltage lockout circuitry to eliminate slow startup problems. These converters are designed and manufactured in a facility qualified to ISO9001 and certified to MILPRF-38534 and MIL-STD-883. This product may incorporate one or more of the following U.S.
