NDP1331KC, NDP1331KC-Deep 34V High Efficiency Synchronous Step-Down DC/DC Converter

NDP1331KC Description

NDP1331KC 2.8A,34V High Efficiency Synchronous Step-Down DC/DC Converter .
Features NDP1331KC is a high efficiency, Z monolithic synchronous step-down DC/DC converter utilizing a constant frequency, average current mode con.

NDP1331KC Features

* NDP1331KC is a high efficiency, Z monolithic synchronous step-down DC/DC converter utilizing a constant frequency, average current mode control architecture. Capable of delivering up to 2.8A continuous load with excellent line and load regulation. The device operates from an input voltage range of

NDP1331KC Applications

* reliability
* Car Charger
* Rechargeable Portable Devices
* Networking Systems
* Distributed Power Systems Typical Application Note: When using a solid or ceramic input Cap, It is recommended to parallel a TVS diode. Nanjing Deep-Pool Microelectronics Co. , Ltd. Jun-2019 Rev1.0

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NDP1331KC, NDP1331KC-Deep. Please refer to the document for exact specifications by model.

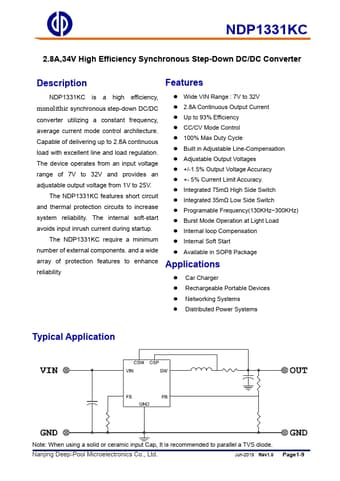

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NDP1331KC, NDP1331KC-Deep
Manufacturer
Deep-Pool
File Size
439.99 KB
Datasheet
NDP1331KC-Deep-Pool.pdf
Description
34V High Efficiency Synchronous Step-Down DC/DC Converter
Note
This datasheet PDF includes multiple part numbers: NDP1331KC, NDP1331KC-Deep.
Please refer to the document for exact specifications by model.
