SD1030D, SD1020D (SD1020D - SD10100D) TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRIER DIODE

SD1030D Description

www.DataSheet4U.com DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS SD1020D THRU SD10100D TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRI.

SD1030D Applications

* .405(10.3) .380(9.7) 2 .370(9.4) .330(8.4) 1 2 3 .055 Max (1.4) TO-263(D2 PAK) .190(4.8) .160(4.1) 6o~8o .055(1.4) .045(1.2) MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Terminals: Solder plated, solderable per MIL-STD-750, Method 2026
* Mounting

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SD1030D, SD1020D. Please refer to the document for exact specifications by model.

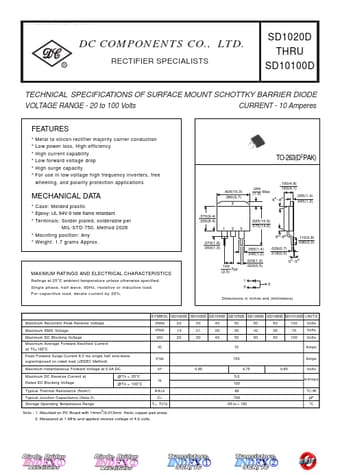

datasheet Preview Page 2
