MBR152W, MBR1505W - (MBR1505W - MBR1510W) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

Name: MBR152W
SKU: MBR152W-595744

Dc Components

The MBR152W by Dc Components is a (MBR1505W - MBR1510W) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

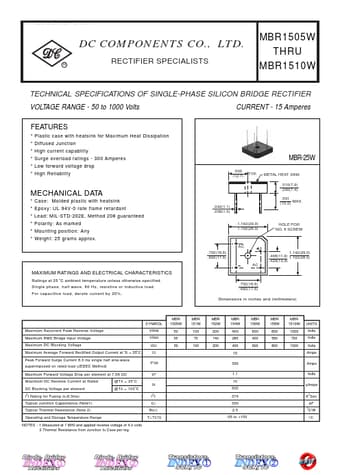

MBR152W (MBR1505W - MBR1510W) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER by Dc Components - Datasheet Preview — Official preview page of the **MBR152W** (MBR1505W - MBR1510W) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER datasheet (Dc Components).

Datasheet Details

Part number	MBR152W, MBR1505W
Manufacturer	Dc Components
File Size	286.36 KB
Description	(MBR1505W - MBR1510W) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet	MBR1505W_DcComponents.pdf
Note	This datasheet PDF includes multiple part numbers: MBR152W, MBR1505W. Please refer to the document for exact specifications by model.
Additional preview pages of the MBR152W datasheet.

MBR152W Product details

Features

Plastic case with heatsink for Maximum Heat Dissipation.
Diffused Junction.
High current capability.
Surge overload ratings - 300 Amperes.
Low forward voltage drop.
High Reliability .500 (12.7) TYP. METAL HEAT SINK .310(7.9) .290(7.4) .591 MAX. (15.0) MBR-25W.
