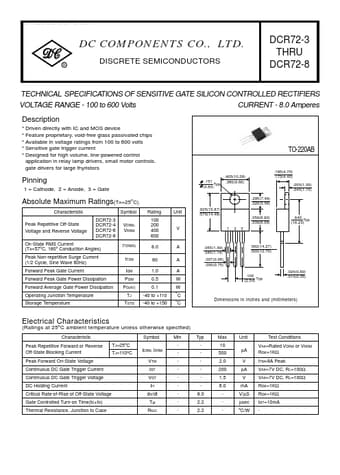

The DCR72-4 by Dc Components is a SENSITIVE GATE SILICON CONTROLLED RECTIFIER. Below is the official datasheet preview.
| Part number | DCR72-4, DCR72-3 |
|---|---|
| Manufacturer | Dc Components |
| File Size | 61.59 KB |
| Description | SENSITIVE GATE SILICON CONTROLLED RECTIFIER |
| Datasheet |
 DCR72-3_DcComponents.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: DCR72-4, DCR72-3. Please refer to the document for exact specifications by model. |
|
|
|
Driven directly with IC and MOS device Feature proprietary, void-free glass passivated chips Available in voltage ratings from 100 to 600 volts Sensitive gate trigger current Designed for high volume, line-powered control application in relay lamp drivers, small motor controls, gate drivers for large thyristors TO-220AB .185(4.70) .173(4.40) .055(1.39) .045(1.15) .295(7.49) .220(5.58) Pinning 1 = Cathode, 2 = Anode, 3 = Gate .151 Typ (3.83) .405(10.28) .380(9.66
