DCR106-8 - SENSITIVE GATE SILICON CONTROLLED RECTIFIER

This page provides the datasheet information for the DCR106-8, a member of the DCR106-3 SENSITIVE GATE SILICON CONTROLLED RECTIFIER family.

Description

Driven directly with IC and MOS device Feature proprietary, void-free glass passivated chips Available in voltage ratings from 100 to 600 volts Sensitive gate trigger current Designed for high volume, line-powered control application in relay lamp drivers, small motor c

📥 Download Datasheet

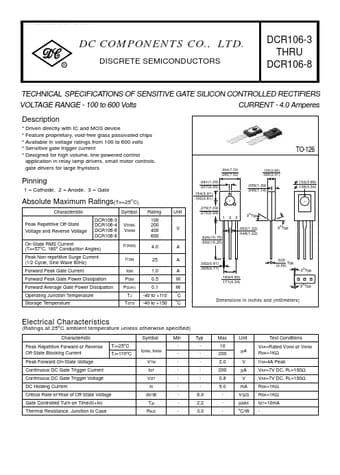

Datasheet preview – DCR106-8

Datasheet Details

Part number DCR106-8
Manufacturer Dc Components
File Size 78.96 KB
Description SENSITIVE GATE SILICON CONTROLLED RECTIFIER
Datasheet download datasheet DCR106-8 Datasheet
