DC9018 - TECHNICAL SPECIFICATIONS OF NPN EPITAXIAL PLANAR TRANSISTOR

Description

Designed for use in AM/FM amplifier and local oscillator of FM/VHF tuner.

📥 Download Datasheet

Datasheet preview – DC9018

Datasheet Details

Part number DC9018
Manufacturer Dc Components
File Size 237.41 KB
Description TECHNICAL SPECIFICATIONS OF NPN EPITAXIAL PLANAR TRANSISTOR
Datasheet download datasheet DC9018 Datasheet
Additional preview pages of the DC9018 datasheet.

📁 Similar Datasheet

  • DC9012 - TECHNICAL SPECIFICATIONS OF PNP EPITAXIAL PLANAR TRANSISTOR (ETC)
  • DC900P30 - Directional Coupler (Yantel)
  • DC971LG-011 - Low Voltage DC Motor (Johnson Motor)
  • DC972LG-011 - Low Voltage DC Motor (Johnson Motor)
Other Datasheets by Dc Components
  • DC9013 - TECHNICAL SPECIFICATIONS OF NPN EPITAXIAL PLANAR TRANSISTOR
  • DC9014 - TECHNICAL SPECIFICATIONS OF NPN EPITAXIAL PLANAR TRANSISTOR
  • DC9015 - TECHNICAL SPECIFICATIONS OF NPN EPITAXIAL PLANAR TRANSISTOR

Full PDF Text Transcription

Click to expand full text

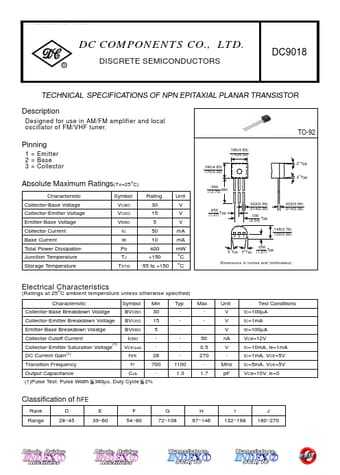

www.DataSheet4U.com DC COMPONENTS CO., LTD. R DC9018 DISCRETE SEMICONDUCTORS TECHNICAL SPECIFICATIONS OF NPN EPITAXIAL PLANAR TRANSISTOR Description Designed for use in AM/FM amplifier and local oscillator of FM/VHF tuner. TO-92 .190(4.83) .170(4.33) .190(4.83) .170(4.33) 2 Typ 2 Typ o o Pinning 1 = Emitter 2 = Base 3 = Collector Absolute Maximum Ratings(TA=25 Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Total Power Dissipation Junction Temperature Storage Temperature VCBO VCEO VEBO IC IB PD TJ TSTG o C) Rating 30 15 5 50 10 400 +150 -55 to +150 Unit V V V mA mA mW o o Symbol .500 Min (12.70) .022(0.56) .014(0.36) .100 Typ (2.54) .148(3.76) .132(3.36) .022(0.56) .014(0.36) .050 Typ (1.27) 3 2 1 .
