BR2505W - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

Name: BR2505W
SKU: BR2505W-122690

Dc Components

The BR2505W by Dc Components is a TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

BR2505W TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER by Dc Components - Datasheet Preview — Official preview page of the **BR2505W** TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER datasheet (Dc Components).

Datasheet Details

Part number	BR2505W
Manufacturer	Dc Components
File Size	429.53 KB
Description	TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet	BR2505W_DcComponents.pdf

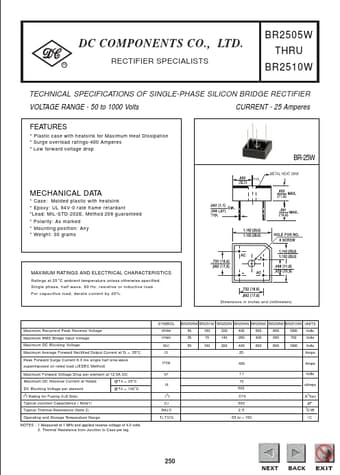

Additional preview pages of the BR2505W datasheet.

BR2505W Product details

Features

Plastic case with heatsink for Maximum Heat Dissipation.
Surge overload ratings-400 Amperes.
Low forward voltage drop BR-25W METAL HEAT SINK TYP.
