DAC2F100N6S - Ultra-Fast Soft Recovery Diode Module

Product Overview

📥 Download Datasheet

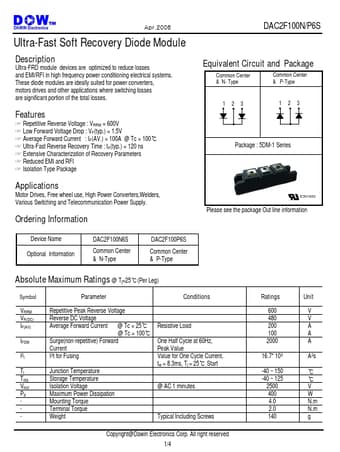

DAC2F100N6S Ultra-Fast Soft Recovery Diode Module by Dawin Electronics - Datasheet Preview — Datasheet preview – DAC2F100N6S

Datasheet Details

Part number	DAC2F100N6S
Manufacturer	Dawin Electronics
File Size	109.25 KB
Description	Ultra-Fast Soft Recovery Diode Module
Datasheet	DAC2F100N6S Datasheet
Additional preview pages of the DAC2F100N6S datasheet.

Product details

Description

Ultra-FRD module devices are optimized to reduce losses and EMI/RFI in high frequency power conditioning electrical systems.

Features

☞ Repetitive Reverse Voltage : VRRM = 600V ☞ Low Forward Voltage Drop : VF(typ. ) = 1.5V ☞ Average Forward Current : IF(AV. ) = 100A @ Tc = 100℃ ☞ Ultra-Fast Reverse Recovery Time : trr(typ. ) = 120 ns ☞ Extensive Characterization of Recovery Parameters ☞ Reduced EMI and RFI ☞ Isolation Type Package.
