DMS-40PC - LED Display Precision / Miniature Digital Panel Voltmeters

Datel

📥 Download Datasheet

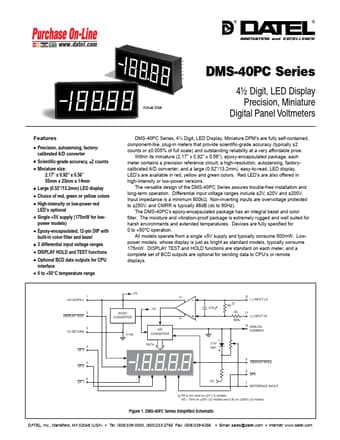

DMS-40PC Datasheet Preview — Preview of DMS-40PC PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DMS-40PC
Manufacturer	Datel
File Size	230.86 KB
Description	LED Display Precision / Miniature Digital Panel Voltmeters
Datasheet	DMS-40PC_Datel.pdf

DMS-40PC Product details

Features

Precision, autozeroing, factorycalibrated A/D converter.
Scientific-grade accuracy, ±2 counts.
Miniature size: 2.17" x 0.92" x 0.56" 55mm x 23mm x 14mm.
Large (0.52"/13.2mm) LED display.
Choice of red, green or yellow colors.
High-intensity or low-power red LED's optional.
Single +5V supply (175mW for lowpower models).
Epoxy-encapsulated, 12-pin DIP with built-in color filter and bezel.
3 differential input voltage.
