EFL-1503XL - LCD Module

The EFL-1503XL by Data Module is a LCD Module. Below is the official datasheet preview.

Datasheet Details

Part number	EFL-1503XL
Manufacturer	Data Module
File Size	622.68 KB
Description	LCD Module
Datasheet	EFL-1503XL_DataModule.pdf

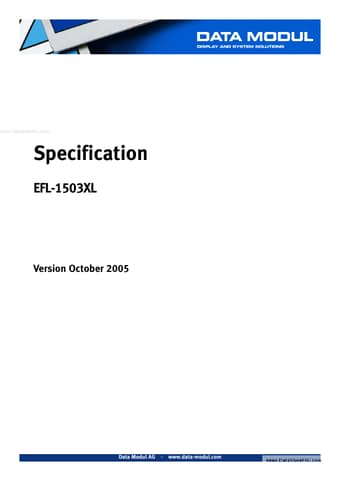

Additional preview pages of the EFL-1503XL datasheet.

EFL-1503XL Product details

Description

3G 1-1. Overview 3G 1-2. Quick reference table of Characteristics 3G www.DataSheet4U.com 2. USER CONTROL & OSD 6G 2-1. Key Control Board 6G 2-2. OSD Menu Screen7G 2-3. OSD Control Functions8G 3. CONNECTOR PIN DESCRIPTIONS 9G 3-1. 15 Pin D-SUB Connector9G 3-2. Serial(RS-232C) Connector 9G 3-3. Audio Connector 10G 4. STANDARD DISPLAY MODE 11G 5. MECHANICAL STRUCTURE 12G Data Modul AG - www.data-modul.com 2 1. GENERAL DESCRIPTION 1-1. Overview Data Modul open frame LCD Monitor EFL-1503XL

Features

like, DVI input, Video input, Touch Screen, Stereo Audio amplifier, Boot up custom logo and custom designed frame. 1-2. Quick reference table of Characteristics Size Active Display Area Type No. Number of Pixels Pixel Arrangement Pixel Pitch Color Depth Surface Treatments Panel (LG-Philips) Viewing Angle (CRt10) 15” Diagonal 304.1 x 228.1 mm LG-Philips, LM150X08 1024 (H) x 768 (V) RGB Vertical Stripe 0.297 mm x 0.297mm 16.7M True Color Hard Coating (3H), Haze 44% Horizontal : Vertical : Typ. 40.
