DS1080L - Spread-Spectrum Crystal Multiplier

Name: DS1080L
SKU: DS1080L-591019

Dallas Semiconductor

📥 Download Datasheet

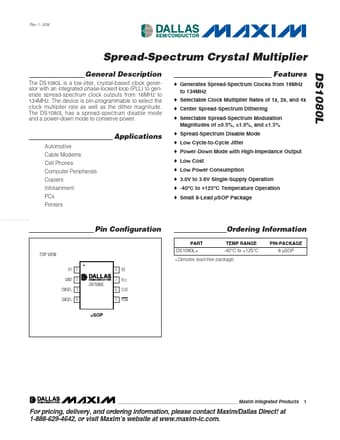

DS1080L Datasheet Preview — Preview of DS1080L PDF

Datasheet Details

Part number	DS1080L
Manufacturer	Dallas Semiconductor
File Size	205.21 KB
Description	Spread-Spectrum Crystal Multiplier
Datasheet	DS1080L_DallasSemiconductor.pdf

DS1080L Product details

Description

The DS1080L is a low-jitter, crystal-based clock generator with an integrated phase-locked loop (PLL) to generate spread-spectrum clock outputs from 16MHz to 134MHz.

Features

Generates Spread-Spectrum Clocks from 16MHz to 134MHz.
Selectable Clock Multiplier Rates of 1x, 2x, and 4x.
Center Spread-Spectrum Dithering.
Selectable Spread-Spectrum Modulation Magnitudes of ±0.5%, ±1.0%, and ±1.5%.
Spread-Spectrum Disable Mode.
Low Cycle-to-Cycle Jitter.
Power-Down Mode with High-Impedance Output.
Low Cost.
Low Power Consumption.
3.0V to 3.6V Single-Supply Operation.
-40°C to.
