DS1961S - 1kb Protected EEPROM iButton With SHA-1 Engine

Name: DS1961S
SKU: DS1961S-514359

Dallas Semiconducotr

📥 Download Datasheet

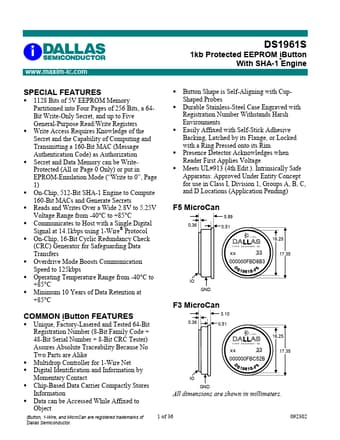

DS1961S Datasheet Preview — Preview of DS1961S PDF

Datasheet Details

Part number	DS1961S
Manufacturer	Dallas Semiconducotr
File Size	360.74 KB
Description	1kb Protected EEPROM iButton With SHA-1 Engine
Datasheet	DS1961S_DallasSemiconducotr.pdf

DS1961S Product details

Description

The DS1961S combines 1024 bits of EEPROM, a 64-bit secret, an 8-byte register/control page with up to five user-read/write bytes, a 512-bit SHA-1 engine, and a fully featured 1-Wire interface in a rugged iButton.

Features

1128 Bits of 5V EEPROM Memory Partitioned into Four Pages of 256 Bits, a 64Bit Write-Only Secret, and up to Five General-Purpose Read/Write Registers Write Access Requires Knowledge of the Secret and the Capability of Computing and Transmitting a 160-Bit MAC (Message Authentication Code) as Authorization Secret and Data Memory can be WriteProtected (All or Page 0 Only) or put in EPROM-Emulation Mode (“Write to 0”, Page 1) On-Chip, 512-Bit SHA-1 Engine to Compute 160-Bit MACs and Generate S.
