DS1866 - Log Trimmer Potentiometer

Dallas Semiconducotr

📥 Download Datasheet

DS1866 Datasheet Preview — Preview of DS1866 PDF

Datasheet Details

Part number	DS1866
Manufacturer	Dallas Semiconducotr
File Size	114.80 KB
Description	Log Trimmer Potentiometer
Datasheet	DS1866_DallasSemiconducotr.pdf

DS1866 Product details

Description

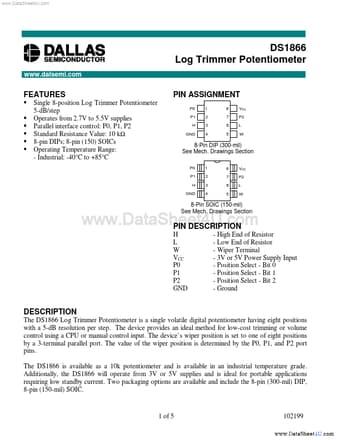

H L W VCC P0 P1 P2 GND - High End of Resistor - Low End of Resistor - Wiper Terminal - 3V or 5V Power Supply Input - Position Select - Bit 0 - Position Select - Bit 1 - Position Select - Bit 2 - Ground 8-Pin SOIC (150-mil) See Mech.Drawings Section DESCRIPTION The DS1866 Log Trimmer Potentiometer is a single volatile digital potentiometer having eight positions with a 5-dB resolution per step.The device provides an ideal method for low-cost trimming or volume control using a CPU or manual co

Features

Single 8-position Log Trimmer Potentiometer 5-dB/step.
Operates from 2.7V to 5.5V supplies.
Parallel interface control: P0, P1, P2.
Standard Resistance Value: 10 kΩ.
8-pin DIPs; 8-pin (150) SOICs.
Operating Temperature Range: - Industrial: -40°C to +85°C PIN.
