DS1411DB-9 - Serial Port iButton Holder

Name: DS1411DB-9
SKU: DS1411DB-9-282811

Dallas Semiconducotr

📥 Download Datasheet

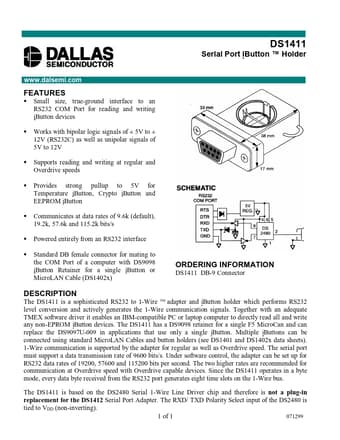

DS1411DB-9 Datasheet Preview — Preview of DS1411DB-9 PDF

Datasheet Details

Part number	DS1411DB-9
Manufacturer	Dallas Semiconducotr
File Size	50.27 KB
Description	Serial Port iButton Holder
Datasheet	DS1411DB-9_DallasSemiconducotr.pdf

DS1411DB-9 Product details

Description

The DS1411 is a sophisticated RS232 to 1-Wire TM adapter and iButton holder which performs RS232 level conversion and actively generates the 1-Wire communication signals.

Features

Small size, true-ground interface to an RS232 COM Port for reading and writing iButton devices Works with bipolar logic signals of ± 5V to ± 12V (RS232C) as well as unipolar signals of 5V to 12V Supports reading and writing at regular and Overdrive speeds Provides strong pullup to 5V for Temperature iButton, Crypto iButton and EEPROM iButton Communicates at data rates of 9.6k (default), 19.2k, 57.6k and 115.2k bits/s Powered entirely from an RS232 interface Standard DB female connector for matin.
