DS1402D-17 - iButton Probe Component Parts

Description

The four component parts that are used to construct the Blue-Dotä iButton reader found in the DS1402D-DR8 and DS1402D-DB8 are described here.

Diagrams 1 through 4 show the individual part dimensions.

This document also describes how to assemble the Blue-Dot given the sub-parts listed in Table 1.

Features

  • Spring-Mounted iButton Reader Momentary Contact for Both F3 and F5 Style iButtons or Dwelled Contact for F5 Only Convenient Tactile Feedback System for Dwelled iButton Contact ® Mounting Pad Layout .82in Ground .080in Data .46in General.

📥 Download Datasheet

Datasheet Details

Part number DS1402D-17
Manufacturer Dallas Semiconducotr
File Size 217.52 KB
Description iButton Probe Component Parts
Datasheet download datasheet DS1402D-17 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DS1401 Front Panel Ibutton Holder Maxim Integrated Products
DS1410D Parallel Port Button Holder Dallas Semiconductor
DS1410E Parallel Port Adapter Dallas Semiconductor
DS1411 Serial Port iButton Holder Dallas Semiconductor
DS1413 Passive Serial Port iButton Holder Dallas Semiconductor

Other Datasheets by Dallas Semiconducotr

Part Number Description
DS1402D-10 iButton Probe Component Parts
DS1402D-11 iButton Probe Component Parts
DS1402D-003 iButton Probe Component Parts
DS1402D-010 iButton Probe Component Parts
DS1402D-011 iButton Probe Component Parts

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

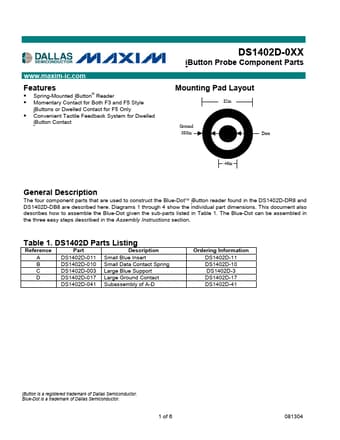

DS1402D-0XX iButton Probe Component Parts www.maxim-ic.com Features § § § Spring-Mounted iButton Reader Momentary Contact for Both F3 and F5 Style iButtons or Dwelled Contact for F5 Only Convenient Tactile Feedback System for Dwelled iButton Contact ® Mounting Pad Layout .82in Ground .080in Data .46in General Description The four component parts that are used to construct the Blue-Dotä iButton reader found in the DS1402D-DR8 and DS1402D-DB8 are described here. Diagrams 1 through 4 show the individual part dimensions. This document also describes how to assemble the Blue-Dot given the sub-parts listed in Table 1. The Blue-Dot can be assembled in the three easy steps described in the Assembly Instructions section. Table 1.
