DS1213B - SmartSocket 16k/64k

Dallas Semiconducotr

📥 Download Datasheet

DS1213B Datasheet Preview — Preview of DS1213B PDF

Datasheet Details

Part number	DS1213B
Manufacturer	Dallas Semiconducotr
File Size	75.18 KB
Description	SmartSocket 16k/64k
Datasheet	DS1213B_DallasSemiconducotr.pdf

DS1213B Product details

Description

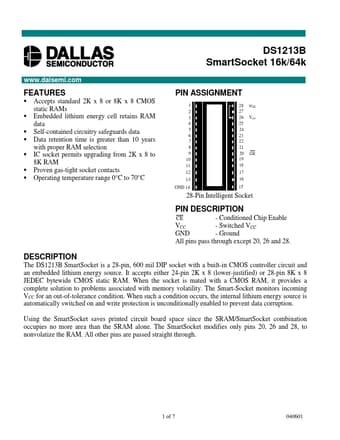

CE - Conditioned Chip Enable VCC GND - Switched VCC - Ground All pins pass through except 20, 26 and 28. DESCRIPTION The DS1213B SmartSocket is a 28-pin, 600 mil DIP socket with a built-in CMOS controller circuit and an embedded lithium energy source.It accepts either 24-pin 2K x 8 (lower-justified) or 28-pin 8K x 8 JEDEC bytewide CMOS static RAM.When the socket is mated with a CMOS RAM, it provides a complete solution to problems associated with memory volatility.The Smart-Socket monito

Features

Accepts standard 2K x 8 or 8K x 8 CMOS static RAMs Embedded lithium energy cell retains RAM data Self-contained circuitry safeguards data Data retention time is greater than 10 years with proper RAM selection IC socket permits upgrading from 2K x 8 to 8K RAM Proven gas-tight socket contacts Operating temperature range 0°C to 70°C PIN.
