DS1065 - EconOscillator/Divider

Dallas Semiconducotr

📥 Download Datasheet

DS1065 Datasheet Preview — Preview of DS1065 PDF

Datasheet Details

Part number	DS1065
Manufacturer	Dallas Semiconducotr
File Size	181.18 KB
Description	EconOscillator/Divider
Datasheet	DS1065-DallasSemiconducotr.pdf

DS1065 Product details

Description

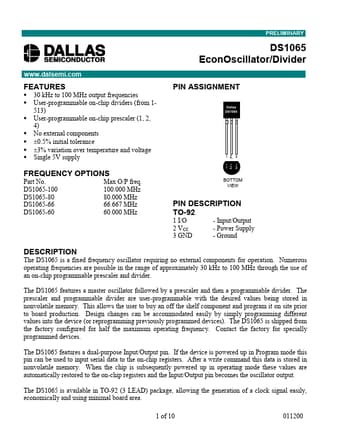

TO-92 1 I/O - Input/Output 2 VCC 3 GND - Power Supply - Ground DESCRIPTION The DS1065 is a fixed frequency oscillator requiring no external components for operation.Numerous operating frequencies are possible in the range of approximately 30 kHz to 100 MHz through the use of an on-chip programmable prescaler and divider.The DS1065

Features

30 kHz to 100 MHz output frequencies.
User-programmable on-chip dividers (from 1- 513).
User-programmable on-chip prescaler (1, 2, 4).
No external components.
±0.5% initial tolerance.
±3% variation over temperature and voltage.
Single 5V supply.
