DS1020 - Programmable 8-Bit Silicon Delay Line

Description

IN P0-P7 GND OUT VCC S E C Q D - Delay Input - Parallel Program Pins - Ground - Delay Output - +5 Volts - Mode Select - Enable - Serial Port Clock - Serial Data Output - Serial Data Input DESCRIPTION The DS1020 Programmable 8-Bit Silicon Delay Line consists of an 8-bit, user-programmable CMOS silic

Features

  • All-silicon time delay Models with 0.15 ns, 0.25 ns, 0.5 ns, 1 ns, and 2 ns steps Programmable using 3-wire serial port or 8-bit parallel port Leading and trailing edge accuracy Standard 16-pin DIP or 16-pin SOIC Economical Auto-insertable, low profile Low-power CMOS TTL/CMOS-compatible Vapor phase, IR and wave solderable IN E Q/PO P1 P2 P3 P4 GND PIN.

📥 Download Datasheet

Datasheet Details

Part number DS1020
Manufacturer Dallas Semiconducotr
File Size 191.47 KB
Description Programmable 8-Bit Silicon Delay Line
Datasheet download datasheet DS1020 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DS1003 4-Tap Silicon Delay Line Dallas Semiconductor
DS100BR111 Ultra Low Power 10.3 Gbps 1-Lane Repeater Texas Instruments
DS100BR111A Ultra Low Power 10.3 Gbps 1-Lane Repeater Texas Instruments
DS100BR210 Ultra Low Power 10.3 Gbps 2-Channel Repeater Texas Instruments
DS100BR410 Low Power Quad Channel Repeater Texas Instruments

Other Datasheets by Dallas Semiconducotr

Part Number Description
DS1021 Programmable 8-Bit Silicon Delay Line
DS1023 8-Bit Programmable Timing Element
DS1000 5-Tap Silicon Delay Line
DS1004 5-Tap High Speed Silicon Delay Line
DS1005 5-Tap Silicon Delay Line

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

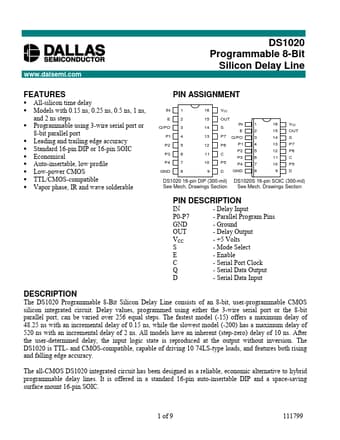

DS1020 Programmable 8-Bit Silicon Delay Line www.dalsemi.com FEATURES All-silicon time delay Models with 0.15 ns, 0.25 ns, 0.5 ns, 1 ns, and 2 ns steps Programmable using 3-wire serial port or 8-bit parallel port Leading and trailing edge accuracy Standard 16-pin DIP or 16-pin SOIC Economical Auto-insertable, low profile Low-power CMOS TTL/CMOS-compatible Vapor phase, IR and wave solderable IN E Q/PO P1 P2 P3 P4 GND PIN ASSIGNMENT 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 VCC OUT S P7 P6 C P5 D IN E Q/PO P1 P2 P3 P4 GND 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 VCC OUT S P7 P6 C P5 D DS1020 16-pin DIP (300-mil) See Mech. Drawings Section DS1020S 16-pin SOIC (300-mil) See Mech.
