SS16A, SS12A - Surface Mount Schottky Rectifier

The SS16A by DOWOSEMI is a Surface Mount Schottky Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	SS16A, SS12A
Manufacturer	DOWOSEMI
File Size	1.05 MB
Description	Surface Mount Schottky Rectifier
Datasheet	SS12A-DOWOSEMI.pdf
Note	This datasheet PDF includes multiple part numbers: SS16A, SS12A. Please refer to the document for exact specifications by model.

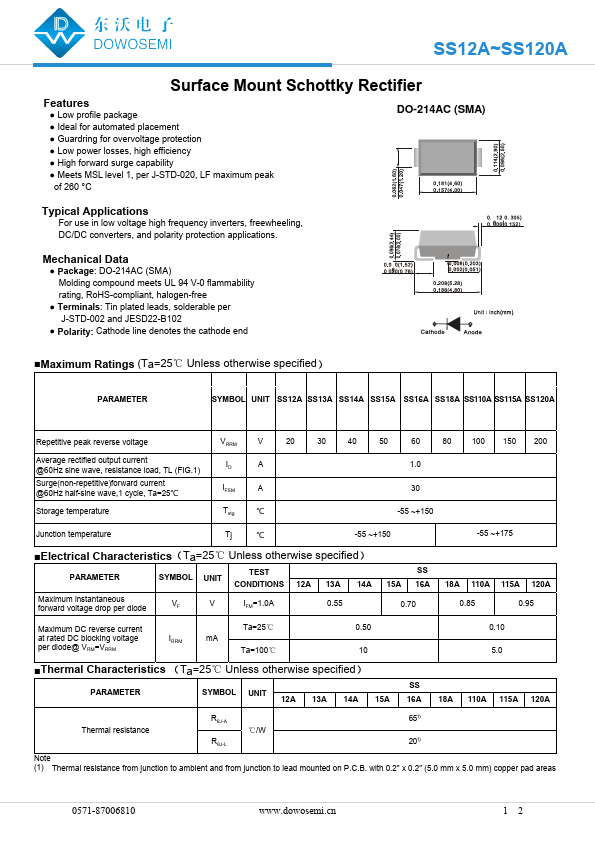

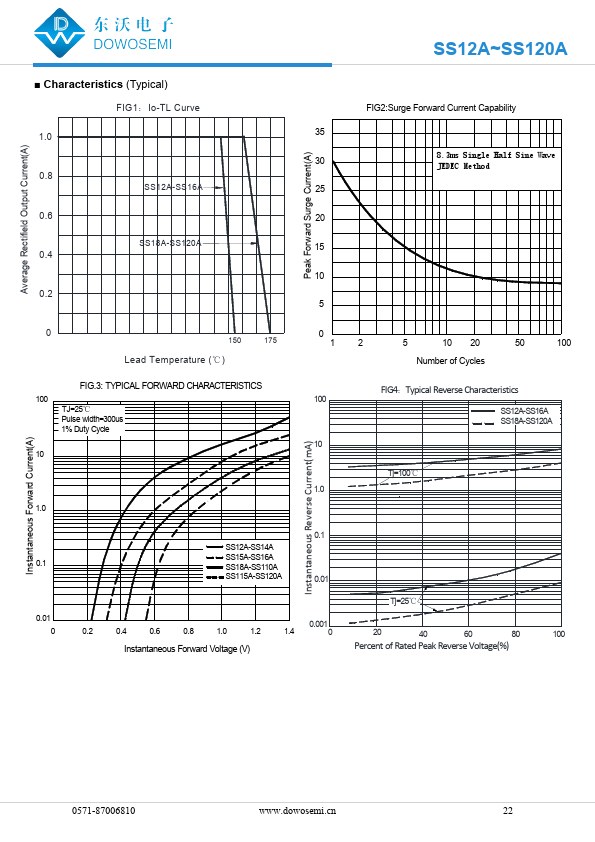

Additional preview pages of the SS16A datasheet.

Low profile package.
Ideal for automated placement.
Guardring for overvoltage protection.
Low power losses, high efficiency.
High forward surge capability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C DO-214AC (SMA) ÄÄÅÅÉÉÍÎÉÌÈÈËËÅÅÆÄÄÄÊÊ ÄÄÅÅÄÄÆËÇÌÈÈÉÉÅÅÇÆÄÄÊÊ ÄÄÅÅÄÉÉÏËÍÈÈÇÇÅÅÏÎÄÄÊÊ Typical.
