DK5V100R10ST1 - High Performance Synchronous Rectifier

Download the DK5V100R10ST1 datasheet PDF. This datasheet also covers the DK5V100R05ST1 variant, as both devices belong to the same high performance synchronous rectifier family and are provided as variant models within a single manufacturer datasheet.

Description

DK5V100RXXST1 is a simple but high efficiency synchronous rectifier IC with only two function pins A-K, corresponding A-K pins of Schottky diode.

With 100V power NMOS integrated, it can significantly reduce the conduction loss of traditional Schottky diode and improve the overall efficiency.

Features

  • Suitable for fly-back PSR/SSR.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DK5V100R05ST1-DONGKESEMICONDUCTOR.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
DK5V100R10ST1 High-performance dual-pin synchronous rectifier DongKe Semicondutor
DK5V100R10S High performance dual pin synchronous rectifier DongKe Semicondutor
DK5V100R10SC1 high-performance dual-pin synchronous rectifier DongKe Semicondutor
DK5V100R10SL High-performance synchronous rectifier DongKe Semicondutor
DK5V100R10M High-performance dual-pin synchronous rectifier DongKe Semicondutor

Other Datasheets by Dongke Semiconductor

Part Number Description
DK5V100R15ST1 High Performance Synchronous Rectifier
DK5V100R05ST1 High Performance Synchronous Rectifier
DK5V100R20ST1 High Performance Synchronous Rectifier
DK5V100R25ST1 High Performance Synchronous Rectifier
DK5V150R25ST1 Synchronous Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

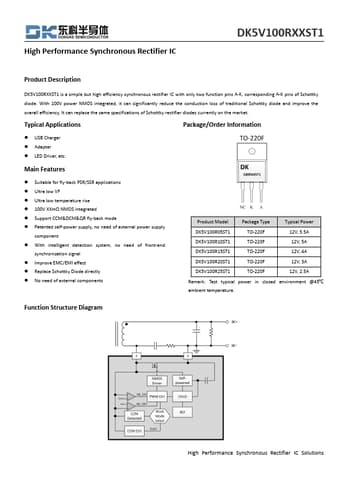

High Performance Synchronous Rectifier IC DK5V100RXXST1 Product Description DK5V100RXXST1 is a simple but high efficiency synchronous rectifier IC with only two function pins A-K, corresponding A-K pins of Schottky diode. With 100V power NMOS integrated, it can significantly reduce the conduction loss of traditional Schottky diode and improve the overall efficiency. It can replace the same specifications of Schottky rectifier diodes currently on the market. Typical Applications Package/Order Information  USB Charger  Adapter  LED Driver, etc.
