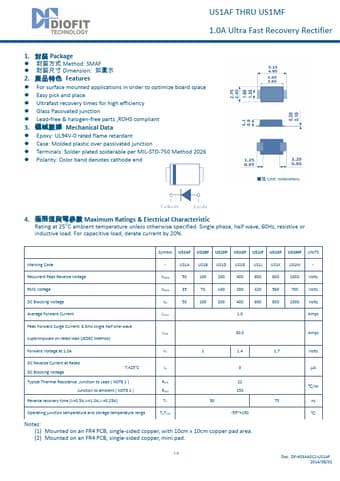

US1AF THRU US1MF 1.0A Ultra Fast Recovery Rectifier
1. Package Method: SMAF Dimension:
2. Features For surface mounted applications in order to optimize board space Easy pick and place Ultrafast recovery times for high efficiency Glass Passivated junction Lead-free & halogen-free parts ,ROHS compliant
3. Mechanical Data Epoxy: UL94V-0 rated flame retardant Case: Molded plastic over passivated junction Terminals: Solder plated solderable per MIL-STD-750 Method 2026 Polarity: Color band denotes cathode end
Unit: millimeters
4. Maximum Ratings & Electrical Characteristic Rating at 25OC ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
US1DF Datasheet
