STPF1040 10A SUPER-FAST RECTIFIER

STPF1040 Description

STPF1040 Green 10A SUPER-FAST RECTIFIER Product Summary (Per Leg, @ TA = +25°C) VRRM (V) 400 IO (A) 5 VF (V) 1.3 IR (μA) 10 Applications * S.

STPF1040 Features

* Super-Fast Switching Capability
* Glass Passivated Die Construction
* Rating to 300V Peak Reverse Voltage
* High Current Capability
* Low Forward Voltage Drop
* Low Reverse Leakage Current
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free.

STPF1040 Applications

* Switched Mode Power Supplies

📥 Download Datasheet

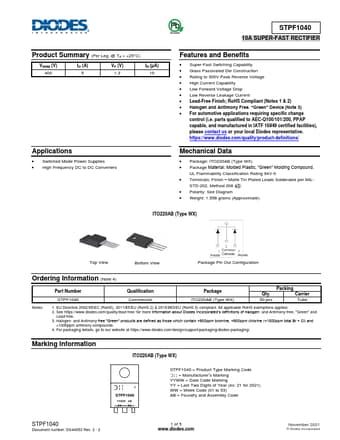

Preview of STPF1040 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPF1040
Manufacturer
DIODES ↗
File Size
445.64 KB
Datasheet
STPF1040-DIODES.pdf
Description
10A SUPER-FAST RECTIFIER
