SMF4L70CAQ - 400W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Download the SMF4L70CAQ datasheet PDF. This datasheet also covers the SMF4L3.3AQ variant, as both devices belong to the same 400w surface-mount transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Description

This new generation TVS is designed for transient overvoltage protection.

Power managements Automotives Battery contacts

Features

  • 400W Peak Pulse Power Dissipation (10µs × 1000µs Waveform).
  • 5V to 200V Standoff Voltages.
  • Provides ESD Protection per IEC61000-4-2 Standard: Air ±30kV, Contact ±30kV.
  • Excellent Clamping Capability.
  • Fast Response Time: Typically Less Than 1.0ns for Uni-Direction, Less Than 5.0ns for Bi-Direction, Form 0 Volts to BV Min.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • The S.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SMF4L3.3AQ-DIODES.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SMF4L70CA Surface Mount Transient Voltage Suppressors SEMIWILL
SMF4L70A TVS Diodes Littelfuse
SMF4L70A Surface Mount Transient Voltage Suppressors ANOVA
SMF4L70A Surface Mount Transient Voltage Suppressors SEMIWILL
SMF4L70AT1G TVS Diodes Littelfuse

Other Datasheets by Diodes Incorporated

Part Number Description
SMF4L70CAQ 400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
SMF4L70CA 400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
SMF4L70A 400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
SMF4L70AQ 400W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR
SMF4L70AQ 400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

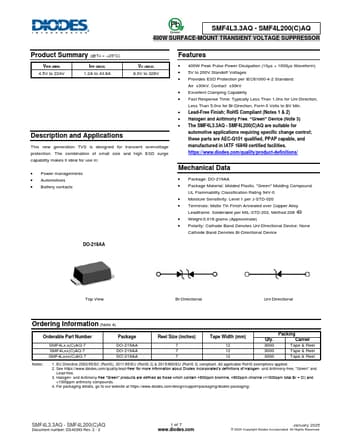

SMF4L3.3AQ - SMF4L200(C)AQ Green 400W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR Product Summary (@TA = +25°C) VBR (MIN) 4.5V to 224V IPP (MAX) 1.2A to 43.8A VC (MAX) 8.0V to 328V Description and Applications This new generation TVS is designed for transient overvoltage protection. The combination of small size and high ESD surge capability makes it ideal for use in: • Power managements • Automotives • Battery contacts Features • 400W Peak Pulse Power Dissipation (10µs × 1000µs Waveform) • 5V to 200V Standoff Voltages • Provides ESD Protection per IEC61000-4-2 Standard: Air ±30kV, Contact ±30kV • Excellent Clamping Capability • Fast Response Time: Typically Less Than 1.0ns for Uni-Direction, Less Than 5.0ns for Bi-Direction, Form 0 Volts to BV Min.
