SMBJ5.0AQ - 600W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR

DIODES

📥 Download Datasheet

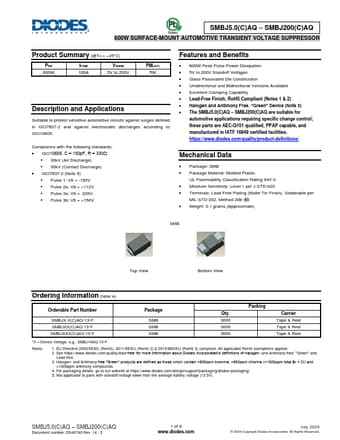

SMBJ5.0AQ Datasheet Preview — Preview of SMBJ5.0AQ PDF

Datasheet Details

Part number	SMBJ5.0AQ
Manufacturer	DIODES
File Size	289.05 KB
Description	600W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	SMBJ5.0AQ-DIODES.pdf

SMBJ5.0AQ Product details

Description

and Applications Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605. Compliance with the following standards: ISO10605, C = 150pF, R = 330Ω: 30kV (Air Discharge) 30kV (Contact Discharge) ISO7637-2 (Note 5) Pulse 1: Vs = -150V Pulse 2a: Vs = +112V Pulse 3a: Vs = -220V Pulse 3b: Vs = +150V

Features

600W Peak Pulse Power Dissipation.
5V to 200V Standoff Voltages.
Glass Passivated Die Construction.
Unidirectional and Bidirectional Versions Available.
Excellent Clamping Capability.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
The SMBJ5.0(C)AQ.
SMBJ200(C)AQ are suitable for automotive.
