SDT40100CTFP, SDT40100CT 40A TRENCH SCHOTTKY RECTIFIER

SDT40100CTFP Description

Product Summary (Per Leg) VRRM (V) 100 IO (A) 20 VF Max (V) @ +25°C 0.79 SDT40100CT/SDT40100CTFP Green 40A TRENCH SCHOTTKY RECTIFIER IR Max (µA) .
and Applications The DIODES™ SDT40100CT/SDT40100CTFP provides very low VF and extremely excellent reverse leakage stability at high temperatures.

SDT40100CTFP Features

* Low Forward Voltage Drop
* Low Power Loss
* Excellent High Temperature Stability
* Soft, Fast Switching Capability
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SDT40100CTFP, SDT40100CT. Please refer to the document for exact specifications by model.

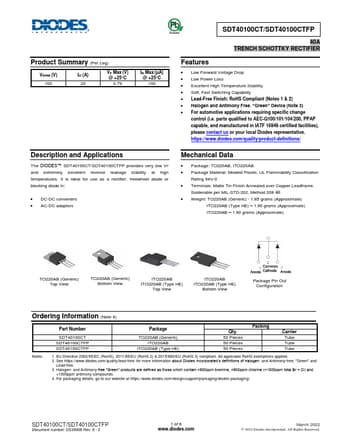

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDT40100CTFP, SDT40100CT
Manufacturer
DIODES ↗
File Size
706.12 KB
Datasheet
SDT40100CT-DIODES.pdf
Description
40A TRENCH SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SDT40100CTFP, SDT40100CT.
Please refer to the document for exact specifications by model.
