SDT30120CTFP, SDT30120CT 30A TRENCH SCHOTTKY RECTIFIER

SDT30120CTFP Description

Product Summary (Per Leg) VRRM (V) 120 IO (A) 15 VF Max (V) @ +25°C 0.93 SDT30120CT/ SDT30120CTFP Green f 30A TRENCH SCHOTTKY RECTIFIER IR Ma.
and Applications The Trench Schottky rectifier provides very low VF and extremely excellent reverse leakage stability at high temperatures.

SDT30120CTFP Features

* Low Forward Voltage Drop
* Low Power Loss
* Excellent High Temperature Stability
* Soft, Fast Switching Capability
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SDT30120CTFP, SDT30120CT. Please refer to the document for exact specifications by model.

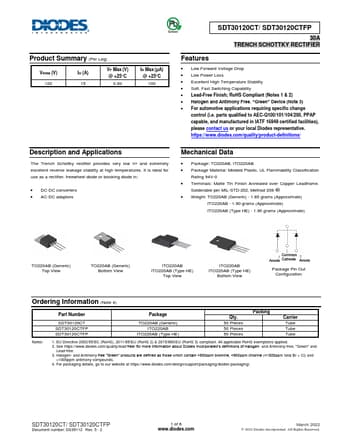

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDT30120CTFP, SDT30120CT
Manufacturer
DIODES ↗
File Size
744.16 KB
Datasheet
SDT30120CT-DIODES.pdf
Description
30A TRENCH SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SDT30120CTFP, SDT30120CT.
Please refer to the document for exact specifications by model.
