SDM20U30 - SURFACE MOUNT SCHOTTKY BARRIER DIODE

DIODES

📥 Download Datasheet

SDM20U30 Datasheet Preview — Preview of SDM20U30 PDF

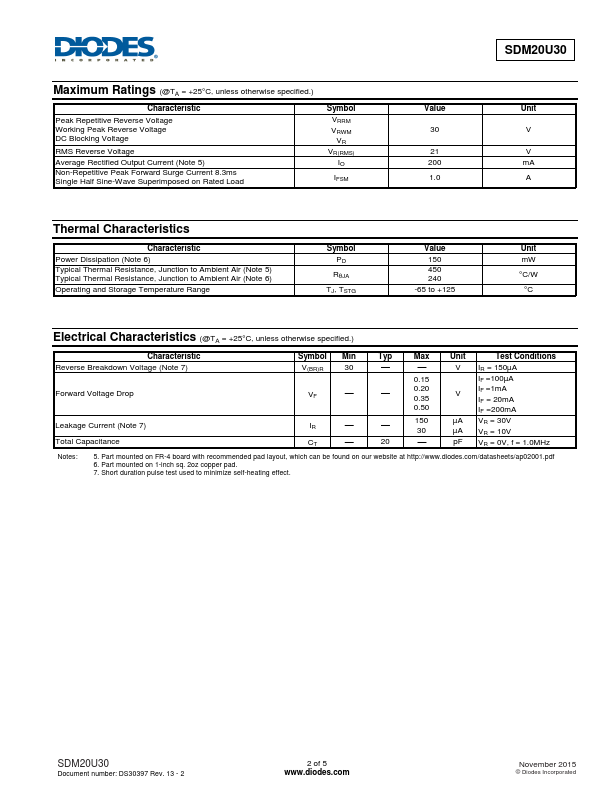

datasheet Preview Page 2

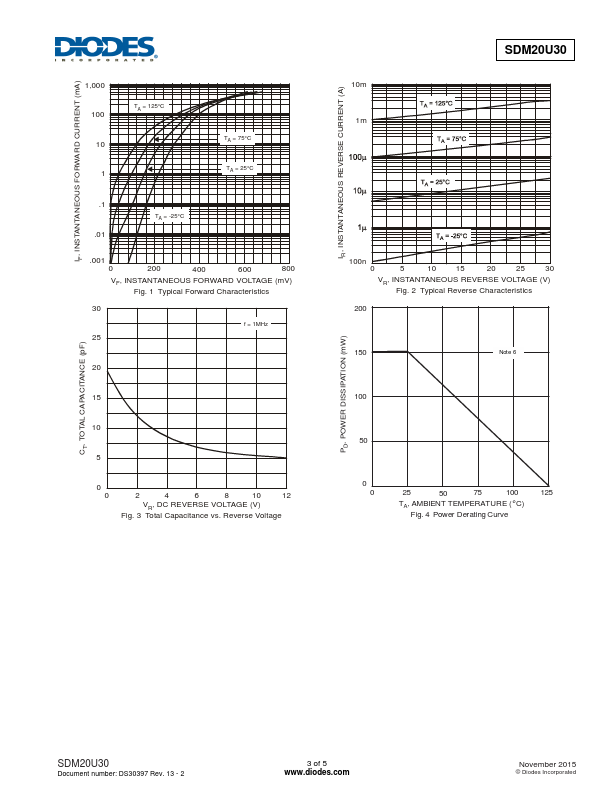

datasheet Preview Page 3

Datasheet Details

Part number	SDM20U30
Manufacturer	DIODES ↗
File Size	314.22 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER DIODE
Datasheet	SDM20U30-DIODES.pdf

SDM20U30 Product details

Features

Low Forward Voltage Drop.
Guard Ring Construction for Transient Protection.
Negligible Reverse Recovery Time.
Low Capacitance.
Ultra-Small Surface Mount Package.
Totally Lead Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. "Green" Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability SDM20U30.
