LL4151 - SURFACE MOUNT FAST SWITCHING DIODE

Name: LL4151
SKU: LL4151-1590450

DIODES

The LL4151 by DIODES is a SURFACE MOUNT FAST SWITCHING DIODE. Below is the official datasheet preview.

Datasheet Details

Part number	LL4151
Manufacturer	DIODES
File Size	46.99 KB
Description	SURFACE MOUNT FAST SWITCHING DIODE
Datasheet	LL4151-DIODES.pdf

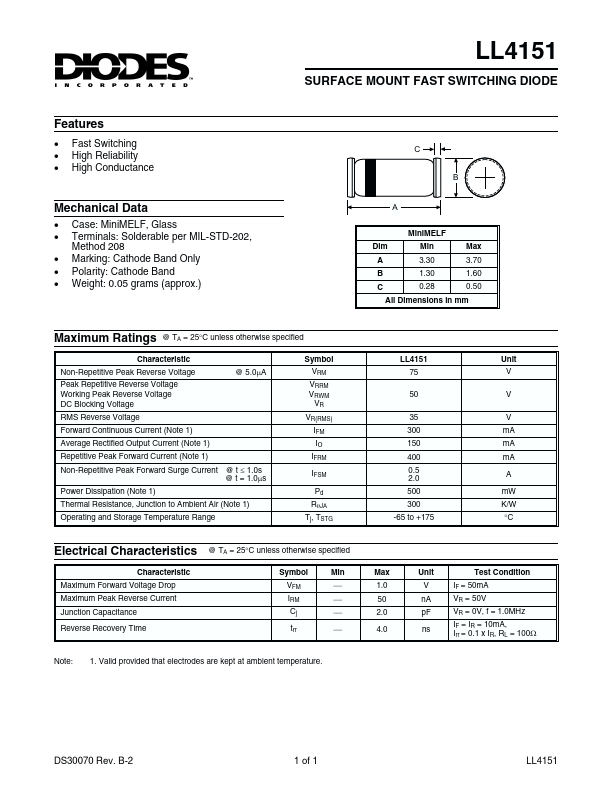

Additional preview pages of the LL4151 datasheet.

Fast Switching.
High Reliability.
High Conductance Mechanical Data.
Case: MiniMELF, Glass.
Terminals: Solderable per MIL-STD-202, Method 208.
Marking: Cathode Band Only.
Polarity: Cathode Band.
Weight: 0.05 grams (approx. ) C B A MiniMELF Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Symbol LL4151 Unit Non-Repetitive Peak Reverse Voltage @ 5.
