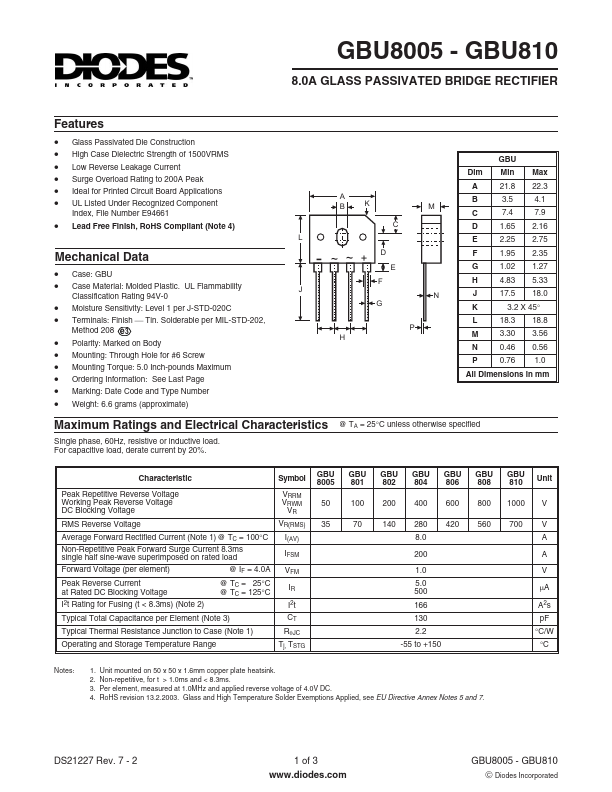

GBU801 Features
* Glass Passivated Die Construction
* High Case Dielectric Strength of 1500VRMS
* Low Reverse Leakage Current
* Surge Overload Rating to 200A Peak
* Ideal for Printed Circuit Board Applications
* UL Listed Under Recognized Component Index, File Number E94661
* Lead Free F
Datasheet Details
GBU801, GBU8005
66.39 KB
8.0a glass passivated bridge rectifier.
This datasheet PDF includes multiple part numbers: GBU801, GBU8005.
Please refer to the document for exact specifications by model.
