DSS5240TQ - 40V PNP TRANSISTOR

DIODES

The DSS5240TQ by DIODES is a 40V PNP TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

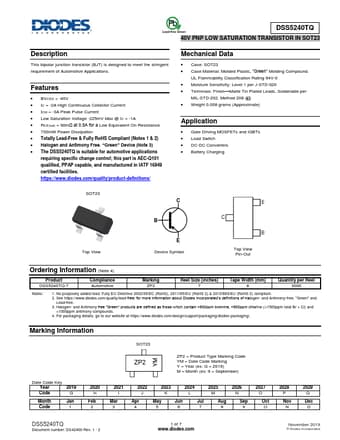

DSS5240TQ 40V PNP TRANSISTOR by DIODES - Datasheet Preview — Official preview page of the DSS5240TQ 40V PNP TRANSISTOR datasheet (DIODES).

Datasheet Details

Part number	DSS5240TQ
Manufacturer	DIODES
File Size	415.01 KB
Description	40V PNP TRANSISTOR
Datasheet	DSS5240TQ-DIODES.pdf
Additional preview pages of the DSS5240TQ datasheet.

DSS5240TQ Product details

Description

This bipolar junction transistor (BJT) is designed to meet the stringent requirement of Automotive Applications.

Features

BVCEO > -40V.
IC = -2A High Continuous Collector Current.
ICM = -3A Peak Pulse Current.
Low Saturation Voltage -225mV Max @ IC = -1A.
RCE(sat) = 90mΩ at 0.5A for a Low Equivalent On-Resistance.
730mW Power Dissipation.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
The DSS5240TQ is suitable for automotive.
