DMNH6009SPS - 60V N-CHANNEL MOSFET

Product Overview

DIODES

Datasheet Details

Part number	DMNH6009SPS
Manufacturer	DIODES
File Size	831.62 KB
Description	60V N-CHANNEL MOSFET
Datasheet	DMNH6009SPS Datasheet

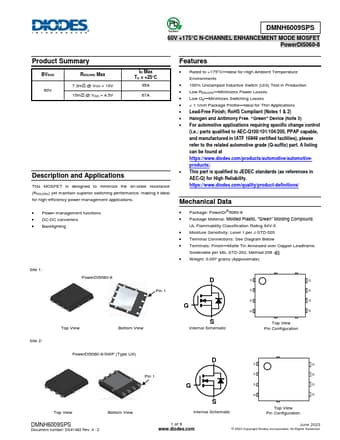

Additional preview pages of the DMNH6009SPS datasheet.

Product details

Description

and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications. Power-management functions DC-DC converters Backlighting Site 1: PowerDI5060-8 Pin 1 Top View Bottom View

Features

Rated to +175°C.
Ideal for High Ambient Temperature Environments.
100% Unclamped Inductive Switch (UIS) Test in Production.
Low RDS(ON).
Minimizes Power Losses.
Low Qg.
Minimizes Switching Losses.
< 1.1mm Package Profile.
Ideal for Thin.
