DMNH4006SPS - 40V N-CHANNEL MOSFET

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Engine Management Systems Body Control Electronics DC-DC Converters PowerDI5060

Features

  • Rated to +175°C.
  • Ideal for High Ambient Temperature Environments.
  • 100% Unclamped Inductive Switching.
  • Ensures More Reliable and Robust End.

📥 Download Datasheet

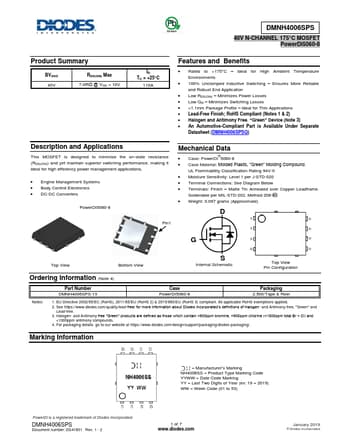

Datasheet preview – DMNH4006SPS

Datasheet Details

Part number DMNH4006SPS
Manufacturer Diodes Incorporated
File Size 521.07 KB
Description 40V N-CHANNEL MOSFET
Datasheet download datasheet DMNH4006SPS Datasheet
Additional preview pages of the DMNH4006SPS datasheet.

📁 Similar Datasheet

Other Datasheets by DIODES

Full PDF Text Transcription

Click to expand full text
DMNH4006SPS Green 40V N-CHANNEL 175°C MOSFET PowerDI5060-8 Product Summary BVDSS 40V RDS(ON) Max 7.0mΩ @ VGS = 10V ID TC = +25°C 110A Features and Benefits  Rated to +175°C – Ideal for High Ambient Temperature Environments  100% Unclamped Inductive Switching – Ensures More Reliable and Robust End Application  Low RDS(ON) – Minimizes Power Losses  Low QG – Minimizes Switching Losses  <1.1mm Package Profile – Ideal for Thin Applications  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free.
