DML1012LDS - SINGLE CHANNEL SMART LOAD SWITCH

DIODES

The DML1012LDS by DIODES is a SINGLE CHANNEL SMART LOAD SWITCH. Below is the official datasheet preview.

📥 Download Datasheet

DML1012LDS SINGLE CHANNEL SMART LOAD SWITCH by DIODES - Datasheet Preview — Official preview page of the **DML1012LDS** SINGLE CHANNEL SMART LOAD SWITCH datasheet (DIODES).

Datasheet Details

Part number	DML1012LDS
Manufacturer	DIODES
File Size	1.03 MB
Description	SINGLE CHANNEL SMART LOAD SWITCH
Datasheet	DML1012LDS-DIODES.pdf

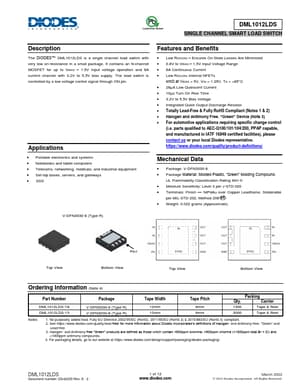

Additional preview pages of the DML1012LDS datasheet.

DML1012LDS Product details

Description

The DIODES™ DML1012LDS is a single channel load switch with very low on-resistance in a small package. 1.5V input voltage operation and 6A current channel with 3.2V to 5.5V bias supply. Portable electronics and systems Notebooks and tablet computers Telecoms, networking, medicals, and industrial equipment Set-top boxes, serve

Features

Low RDS(ON).
Ensures On-State Losses Are Minimized.
0.8V to VBIAS.
1.5V Input Voltage Range.
6A Continuous Current.
Low RDS(ON) Internal NFETs 8mΩ at VBIAS = 5V, VIN = 1.05V, TA = +85°C.
28µA Low Quiescent Current.
10µs Turn On Rise Time.
3.2V to 5.5V Bias Voltage.
Integrated Quick Output Discharge Resistor.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
For auto.
