DMC2053UFDBQ - MOSFET

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, which makes it ideal for high-efficiency power management applications.

Load switches Power management functions Portable power adaptors Mechanical D

Features

  • PCB Footprint of 4mm2.
  • Low On-Resistance.
  • Low Input Capacitance.
  • Low Profile, 0.6mm Maximum Height.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen- and Antimony-Free. “Green” Device (Note 3).
  • The DMC2053UFDBQ is suitable for automotive.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by DIODES
  • DMC2053UVT - MOSFET
  • DMC2058UDVW - COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
  • DMC2004DWK - COMPLEMENTARY PAIR ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
  • DMC2004LPK - COMPLEMENTARY PAIR ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
  • DMC2004VK - COMPLEMENTARY PAIR ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
  • DMC2020USD - 20V MOSFET
  • DMC2025UFDB - COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
  • DMC2025UFDBQ - COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET

Full PDF Text Transcription

Click to expand full text

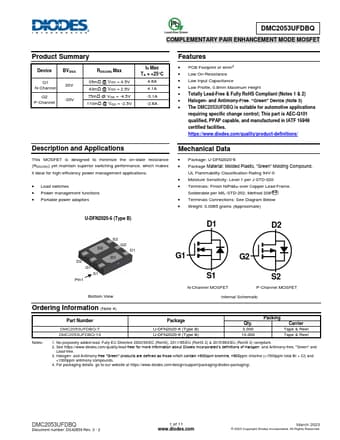

DMC2053UFDBQ COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET Product Summary Device BVDSS Q1 N-Channel Q2 P-Channel 20V -20V RDS(ON) Max 35mΩ @ VGS = 4.5V 43mΩ @ VGS = 2.5V 75mΩ @ VGS = -4.5V 110mΩ @ VGS = -2.5V ID Max TA = +25°C 4.6A 4.1A -3.1A -2.6A Features  PCB Footprint of 4mm2  Low On-Resistance  Low Input Capacitance  Low Profile, 0.6mm Maximum Height  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen- and Antimony-Free. “Green” Device (Note 3)  The DMC2053UFDBQ is suitable for automotive applications requiring specific change control; This part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.
