BSS84Q - P-CHANNEL ENHANCEMENT MODE MOSFET

DIODES

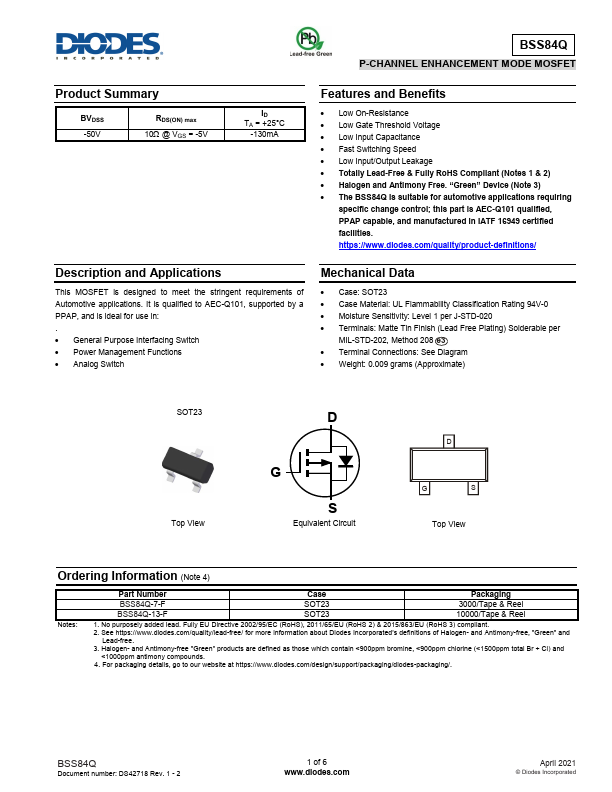

The BSS84Q by DIODES is a P-CHANNEL ENHANCEMENT MODE MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

BSS84Q P-CHANNEL ENHANCEMENT MODE MOSFET by DIODES - Datasheet Preview — Official preview page of the **BSS84Q** P-CHANNEL ENHANCEMENT MODE MOSFET datasheet (DIODES).

Datasheet Details

Part number	BSS84Q
Manufacturer	DIODES
File Size	369.65 KB
Description	P-CHANNEL ENHANCEMENT MODE MOSFET
Datasheet	BSS84Q-DIODES.pdf

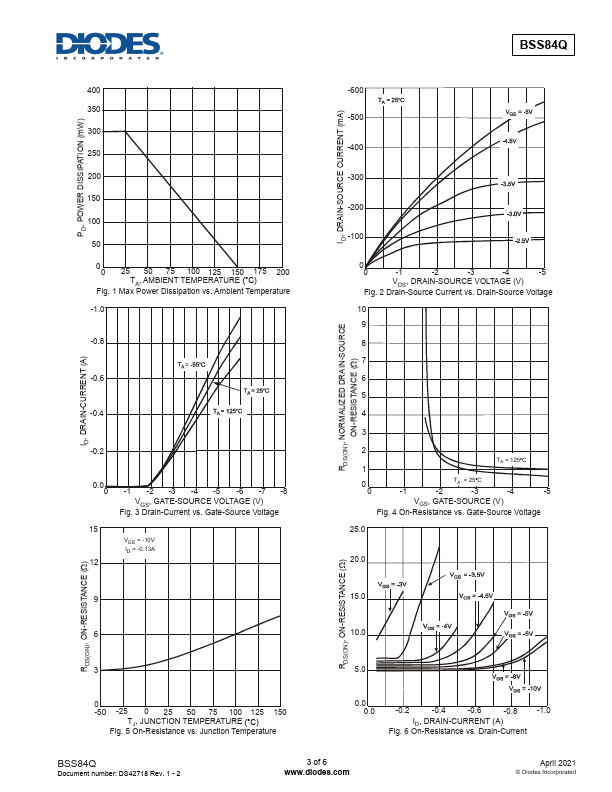

Additional preview pages of the BSS84Q datasheet.

BSS84Q Product details

Description

and Applications This MOSFET is designed to meet the stringent requirements of Automotive applications.It is qualified to AEC-Q101, supported by a PPAP, and is ideal for use in: . General Purpose Interfacing Switch Power Management Functions Analog Switch Mechanical Data Case: SOT23 Case Material: UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish (Lead Free Pl

Features

Low On-Resistance.
Low Gate Threshold Voltage.
Low Input Capacitance.
Fast Switching Speed.
Low Input/Output Leakage.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
The BSS84Q is suitable for automotive.
