AP7372 - 200mA ULDO REGULATOR

Name: AP7372
SKU: AP7372-1579157

DIODES

Datasheet Details

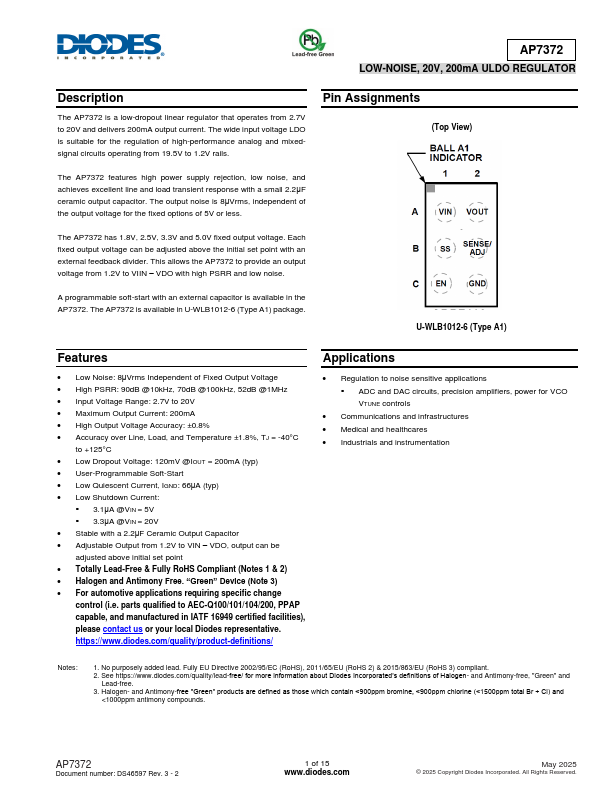

The AP7372 is a low-dropout linear regulator that operates from 2.7V to 20V and delivers 200mA output current.

high power supply rejection, low noise, and achieves excellent line and load transient response with a small 2.2μF ceramic output capacitor. The output noise is 8μVrms, independent of the output voltage for the fixed options of 5V or less. The AP7372 has 1.8V, 2.5V, 3.3V and 5.0V fixed output voltage. Each fixed output voltage can be adjusted above the initial set point with an external feedback divider. This allows the AP7372 to provide an output voltage from 1.2V to VIIN.
VDO with hi.
