AP64202Q AUTOMOTIVE 40V 2A SYNCHRONOUS BUCK

AP64202Q Description

AP64202Q AUTOMOTIVE-COMPLIANT, 40V, 2A SYNCHRONOUS BUCK WITH INTERNAL COMPENSATION .
The AP64202Q is an automotive-compliant, 2A, synchronous buck converter with a wide input voltage range of 3.

AP64202Q Features

* Frequency Spread Spectrum (FSS) with a switching frequency jitter of ±6%, which reduces EMI by not allowing emitted energy to stay in any one frequency for a significant period of time. Pin Assignments BST 1 VIN 2 EN 3 RT/CLK 4 (Top View) EXPOSED PAD 9 SO-8EP The device is available in an SO-8EP

AP64202Q Applications

* Device Temperature Grade 1: -40°C to +125°C TA Range
* VIN: 3.8V to 40V
* Output Voltage (VOUT): 0.8V to VIN
* 2A Continuous Output Current
* 0.8V ± 1% Reference Voltage
* 25µA Low Quiescent Current (Pulse Frequency Modulation)
* Adjustable Switching Frequency: 100kHz t

📥 Download Datasheet

Preview of AP64202Q PDF

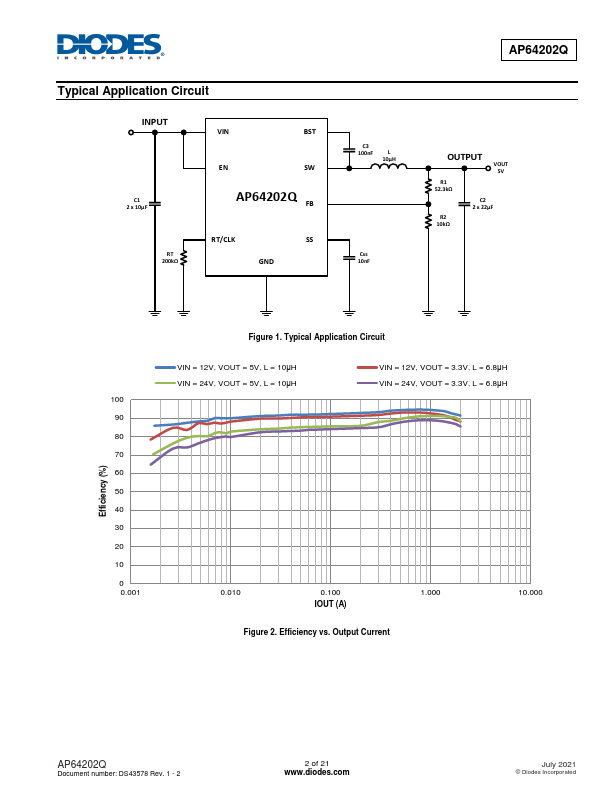

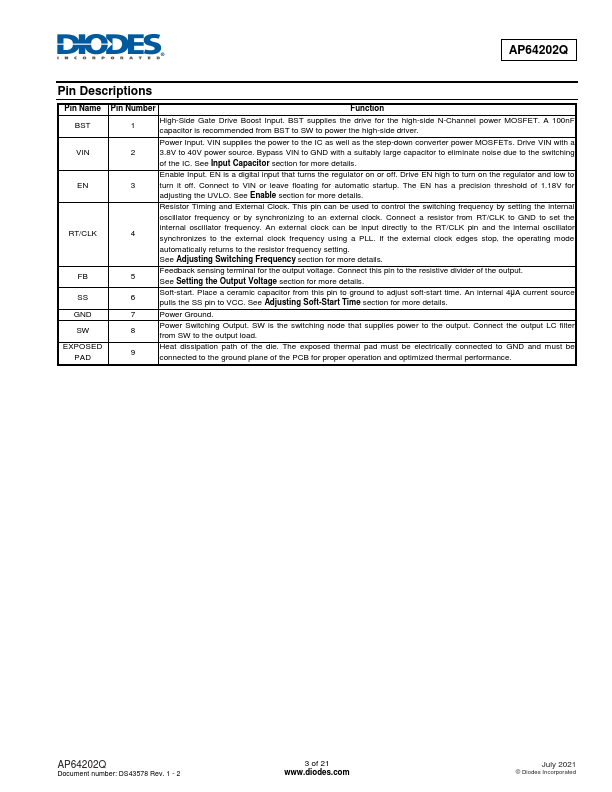

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP64202Q
Manufacturer
DIODES ↗
File Size
1.30 MB
Datasheet
AP64202Q-DIODES.pdf
Description
AUTOMOTIVE 40V 2A SYNCHRONOUS BUCK
