AP63200Q 2A LOW IQ SYNCHRONOUS BUCK CONVERTER

AP63200Q Description

AP63200Q/AP63201Q/AP63203Q/AP63205Q AUTOMOTIVE-COMPLIANT, 32V, 2A LOW IQ SYNCHRONOUS BUCK CONVERTER .
The AP63200Q/AP63201Q/AP63203Q/AP63205Q is an automotivecompliant, 2A, synchronous buck converter with a wide input voltage range of 3.

AP63200Q Features

* Frequency Spread Spectrum (FSS) with a switching frequency jitter of ±6%, which reduces EMI by not allowing emitted energy to stay in any one frequency for a significant period of time. The device is available in a TSOT26 package. Features

AP63200Q Applications

* Device Temperature Grade 1: -40°C to +125°C TA Range
* VIN: 3.8V to 32V
* Output Voltage (VOUT)
* 0.8V to VIN: AP63200Q and AP63201Q
* Fixed 3.3V: AP63203Q
* Fixed 5V: AP63205Q
* 2A Continuous Output Current
* 0.8V ± 1% Reference Voltage
* 22µA Low Quiescent Cur

📥 Download Datasheet

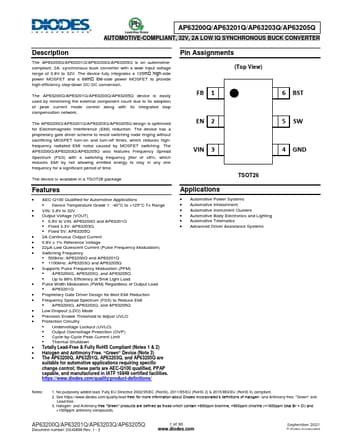

Preview of AP63200Q PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP63200Q
Manufacturer
DIODES ↗
File Size
2.78 MB
Datasheet
AP63200Q-DIODES.pdf
Description
2A LOW IQ SYNCHRONOUS BUCK CONVERTER
