AP62500 5A SYNCHRONOUS BUCK CONVERTER

AP62500 Description

AP62500 4.5V TO 18V INPUT, 5A SYNCHRONOUS BUCK CONVERTER .
The DIODESTM AP62500 is a 5A, synchronous buck converter with a wide input voltage range of 4.

AP62500 Features

* VIN: 4.5V to 18V
* Output Voltage (VOUT): 0.6V to 7V
* 5A Continuous Output Current
* 0.6V ± 1% Reference Voltage
* 195μA Quiescent Current
* Selectable Switching Frequency
* 400kHz
* 800kHz
* 1.2MHz
* Selectable Operation Modes
* Pulse Frequency Modulat

AP62500 Applications

* requiring specific change control (i. e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www. diodes. com/quality/product-definitions/ Pin Assignments (Top View) FB GND SS/TR VCC 1

📥 Download Datasheet

Preview of AP62500 PDF

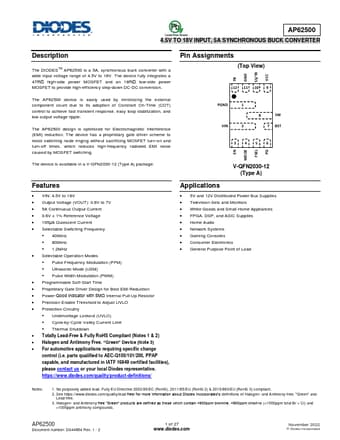

datasheet Preview Page 2 datasheet Preview Page 3
