AH1711 - LOW-VOLTAGE HIGH-SENSITIVITY HALL EFFECT LATCH SWITCH

Name: AH1711
SKU: AH1711-1527859

DIODES

📥 Download Datasheet

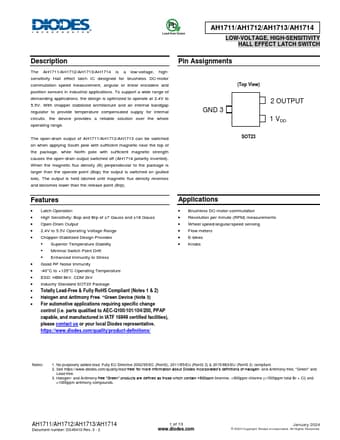

AH1711 Datasheet Preview — Preview of AH1711 PDF

Datasheet Details

Part number	AH1711
Manufacturer	DIODES
File Size	757.94 KB
Description	LOW-VOLTAGE HIGH-SENSITIVITY HALL EFFECT LATCH SWITCH
Datasheet	AH1711-DIODES.pdf

AH1711 Product details

Description

The AH1711/AH1712/AH1713/AH1714 is a low-voltage, highsensitivity Hall effect latch IC designed for brushless DC-motor commutation speed measurement, angular or linear encoders and position sensors in industrial applications.

Features

Latch Operation.
High Sensitivity: Bop and Brp of ±7 Gauss and ±18 Gauss.
Open-Drain Output.
2.4V to 5.5V Operating Voltage Range.
Chopper-Stabilized Design Provides.
Superior Temperature Stability.
Minimal Switch Point Drift.
Enhanced Immunity to Stress.
Good RF Noise Immunity.
-40°C to +125°C Operating Temperature.
ESD: HBM 8kV, CDM 2kV.
Industry Standard SOT23 Package.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
