ADTA114EUAQ - PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Product Overview

DIODES

📥 Download Datasheet

ADTA114EUAQ PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR by DIODES - Datasheet Preview — Datasheet preview – ADTA114EUAQ

Datasheet Details

Part number	ADTA114EUAQ
Manufacturer	DIODES
File Size	395.92 KB
Description	PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	ADTA114EUAQ Datasheet

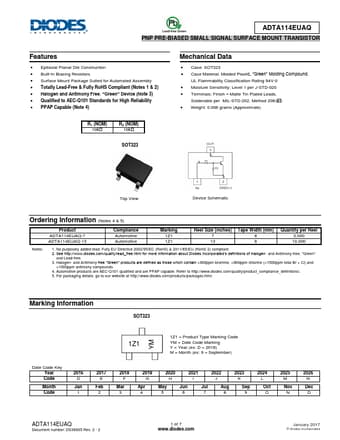

Additional preview pages of the ADTA114EUAQ datasheet.

Product details

Features

Epitaxial Planar Die Construction.
Built-In Biasing Resistors.
Surface Mount Package Suited for Automated Assembly.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
PPAP Capable (Note 4) Mechanical Data.
Case: SOT323.
Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0.
Moisture Sensit.
