DP1800 - Quasi-Resonant PSR CC/CV PWM Power Switch

The DP1800 by DEVELOPER MICROELECTRONICS is a Quasi-Resonant PSR CC/CV PWM Power Switch. Below is the official datasheet preview.

📥 Download Datasheet

DP1800 Quasi-Resonant PSR CC/CV PWM Power Switch by DEVELOPER MICROELECTRONICS - Datasheet Preview — Official preview page of the **DP1800** Quasi-Resonant PSR CC/CV PWM Power Switch datasheet (DEVELOPER MICROELECTRONICS).

Datasheet Details

Part number	DP1800
Manufacturer	DEVELOPER MICROELECTRONICS
File Size	898.68 KB
Description	Quasi-Resonant PSR CC/CV PWM Power Switch
Datasheet	DP1800-DEVELOPERMICROELECTRONICS.pdf

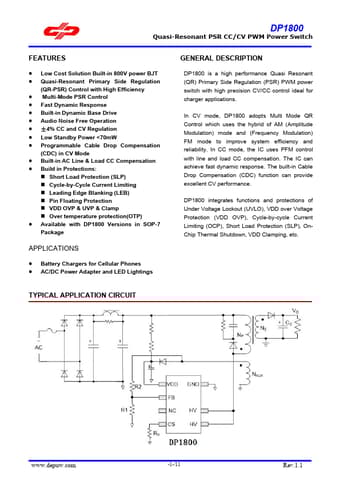

Additional preview pages of the DP1800 datasheet.

DP1800 Product details

Description

DP1800 is a high performance Quasi Resonant (QR) Primary Side Regulation (PSR) PWM power switch with high precision CV/CC control ideal for charger appl

Features

Low Cost Solution Built-in 800V power BJT.
Quasi-Resonant Primary Side Regulation (QR-PSR) Control with High Efficiency.
Multi-Mode PSR Control.
Fast Dynamic Response.
Built-in Dynamic Base Drive.
Audio Noise Free Operation.
±4% CC and CV Regulation.
Low Standby Power.
