CTD27GK12, CTD27
Manufacturer:
DEE
File Size:
278.94 KB
Description:
Thyristor-diode modules.
Note:
This datasheet PDF includes multiple part numbers: CTD27GK12, CTD27.
Please refer to the document for exact specifications by model.
CTD27GK12, CTD27, Thyristor-Diode Modules

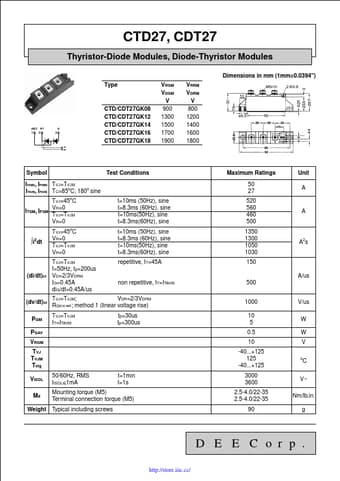

CTD27, CDT27 Thyristor-Diode Modules, Diode-Thyristor Modules Type CTD/CDT27GK08 CTD/CDT27GK12 CTD/CDT27GK14 CTD/CDT27GK16 CTD/CDT27GK18 VRSM VDSM V 900 1300 1500 1700 1900 VRRM VDRM V 800 1200 1400 1600 1800 Dimensions in mm (1mm=0.0394") Symbol Test Conditions I , ITRMS FRMS TVJ=TVJM I , ITAVM FAVM TC=85oC; 180o sine TVJ=45oC ITSM, IFSM VR=0 TVJ=TVJM VR=0 TVJ=45oC i2dt VR=0 TVJ=TVJM VR=0 t=10ms (50Hz), sine t=8.3ms (60Hz), sine t=10ms(50Hz), sine t=8.3ms(60Hz), sine t=10ms (50H
CTD27GK12 Features
* International standard package
* Direct copper bonded Al2O3-ceramic base plate
* Planar passivated chips
* Isolation voltage 3600 V~
* UL registered, E 72873
* Gate-cathode twin pins for version 1 APPLICATIONS
* DC motor control
* Softstart AC motor controller
