BU-61580 - Bus Controller / Remote Terminal / Monitor Terminal - BC/RT/MT

DDC

📥 Download Datasheet

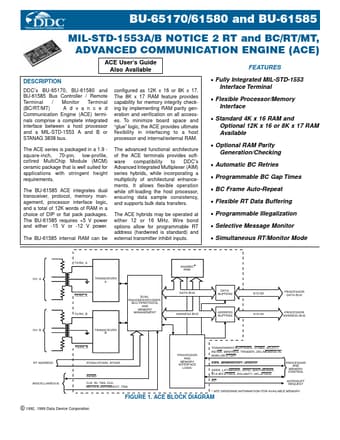

BU-61580 Datasheet Preview — Preview of BU-61580 PDF

Datasheet Details

Part number	BU-61580
Manufacturer	DDC
File Size	668.57 KB
Description	Bus Controller / Remote Terminal / Monitor Terminal - BC/RT/MT
Datasheet	BU-61580_DDC.pdf

BU-61580 Product details

Description

DDC's BU-65170, BU-61580 and BU-61585 Bus Controller / Remote Terminal / Monitor Terminal (BC/RT/MT) A d v a n c e d Communication Engine (ACE) terminals comprise a complete integrated interface between a host processor and a MIL-STD-1553 A and B or STANAG 3838 bus.

Features

Fully Integrated MIL-STD-1553 Interface Terminal Interface.
Flexible Processor/Memory.
Standard 4K x 16 RAM and.
Optional RAM Parity Optional 12K x 16 or 8K x 17 RAM Available Generation/Checking.
Automatic BC Retries.
Programmable BC Gap Times.
BC Frame Auto-Repeat.
Flexible RT Data Buffering.
Programmable Illegalization.
Selective Message Monitor.
Simultaneous RT/Monitor Mode TX/RX_A SHARED.
