6A4G GLASS PASSIVATED RECTIFIER

DC COMPONENTS

6A4G Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS 6A05G THRU 6A10G TECHNICAL SPECIFICATIONS OF GLASS PASSIVATED RECTIFIER VOLTAGE RANGE - 50 to 100.

6A4G Features

* Low cost
* Low leakage
* Low forward voltage drop
* High current capability
* High surge current capability R-6 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color band

📥 Download Datasheet

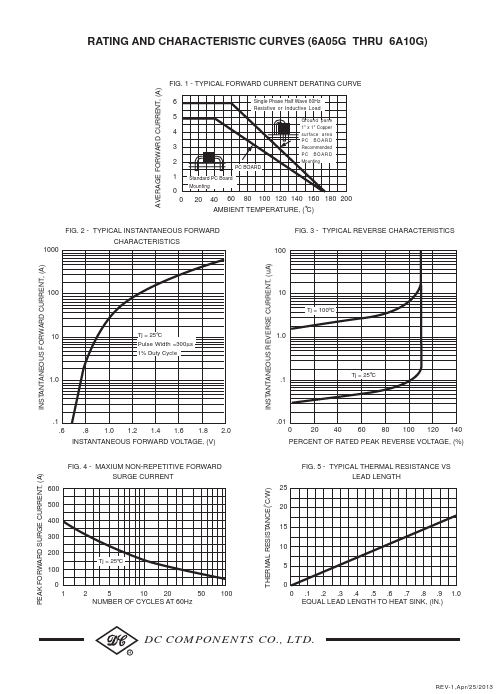

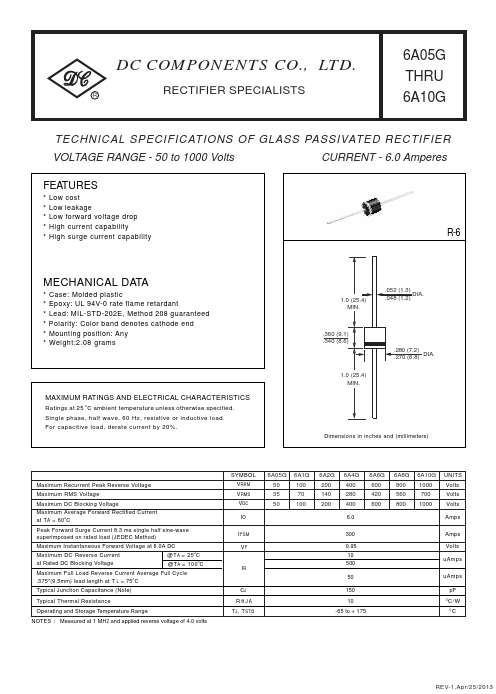

6A4G Datasheet Preview — Preview of 6A4G PDF

Datasheet Details

Part number: 6A4G
Manufacturer: DC COMPONENTS
File Size: 43.38 KB
Datasheet: 6A4G-DCCOMPONENTS.pdf
Description: GLASS PASSIVATED RECTIFIER
