1N4148 - HIGH SPEED SWITCHING DIODES

DC COMPONENTS

The 1N4148 by DC COMPONENTS is a HIGH SPEED SWITCHING DIODES. Below is the official datasheet preview.

📥 Download Datasheet

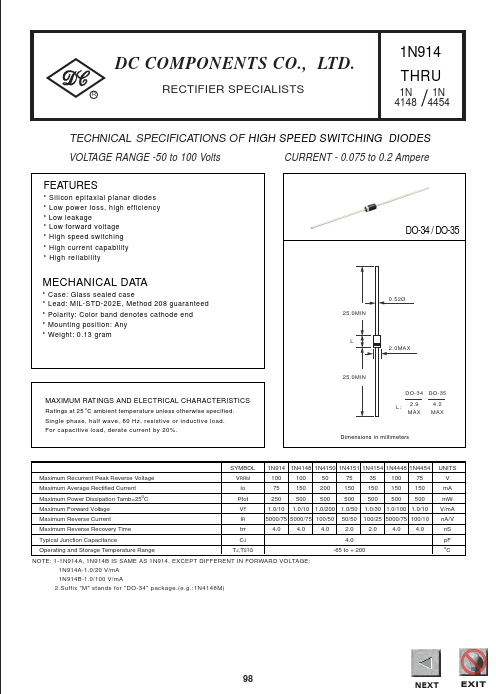

1N4148 HIGH SPEED SWITCHING DIODES by DC COMPONENTS - Datasheet Preview — Official preview page of the 1N4148 HIGH SPEED SWITCHING DIODES datasheet (DC COMPONENTS).

Datasheet Details

Part number	1N4148
Manufacturer	DC COMPONENTS
File Size	167.90 KB
Description	HIGH SPEED SWITCHING DIODES
Datasheet	1N4148-DCCOMPONENTS.pdf

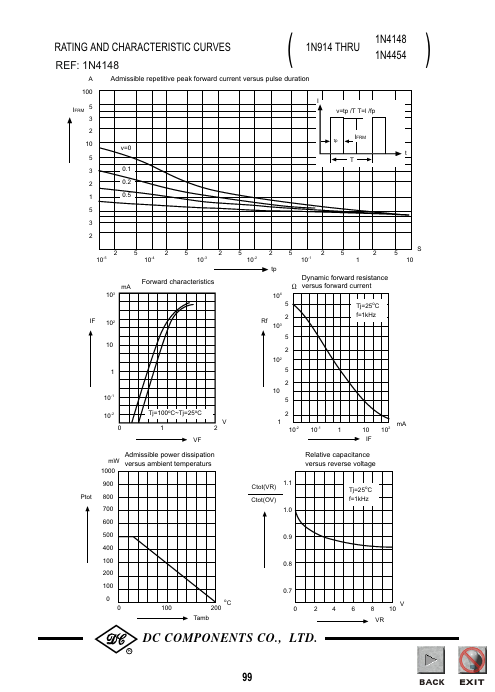

Additional preview pages of the 1N4148 datasheet.

1N4148 Product details

Features

Silicon epitaxial planar diodes.
Low power loss, high efficiency.
Low leakage.
Low forward voltage.
High speed switching.
High current capability.
High reliability.
