DAC-HZ12DMM - Industry-Standard Digital-to-Analog Converters

Download the DAC-HZ12DMM datasheet PDF. This datasheet also covers the DAC-HZ12BGC variant, as both devices belong to the same industry-standard digital-to-analog converters family and are provided as variant models within a single manufacturer datasheet.

General Description

Comp.

Comp.

Comp.

0V to +0.8V at 1mA +2.4V

Key Features

  • 12-Bit binary and 3-digit BCD models.
  • 7 Output ranges.
  • 3μs Vout settling time.
  • 300ns Iout settling time.
  • Guaranteed monotonicity over full temperature range.
  • Integral nonlinearity ±1/2LSB (binary) and ±1/4LSB (BCD), maximum.
  • Differential nonlinearity ±3/4LSB (binary) and ±1/4LSB (BCD), maximum.
  • High-reliability QL versions available INPUT/OUTPUT.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DAC-HZ12BGC-DATEL.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DAC-HZ12DMM
Manufacturer DATEL
File Size 277.53 KB
Description Industry-Standard Digital-to-Analog Converters
Datasheet download datasheet DAC-HZ12DMM Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DAC-02 10-Bit Plus Sign Voltage Output D/A Converters Precision Monolithics
DAC-03 10-Bit Plus Sign Voltage Output D/A Converters Precision Monolithics
DAC-05 10-Bit Plus Sign Voltage Output D/A Converters Precision Monolithics
DAC-08 8-Bit High-Speed Multiplying D/A Converter ON Semiconductor
DAC-08 8-bit high-speed multiplying D/A converter NXP

Other Datasheets by DATEL

Part Number Description
DAC-HZ12DMC Industry-Standard Digital-to-Analog Converters
DAC-HZ12DME Industry-Standard Digital-to-Analog Converters
DAC-HZ12DGC Industry-Standard Digital-to-Analog Converters
DAC-HZ12BGC Industry-Standard Digital-to-Analog Converters
DAC-HZ12BMC Industry-Standard Digital-to-Analog Converters

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

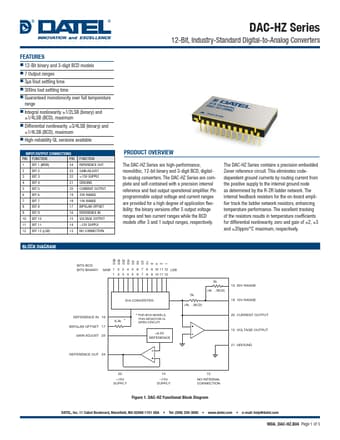

® ® DAC-HZ Series 12-Bit, Industry-Standard Digital-to-Analog Converters FEATURES „ 12-Bit binary and 3-digit BCD models „ 7 Output ranges „ 3μs Vout settling time „ 300ns Iout settling time „ Guaranteed monotonicity over full temperature range „ Integral nonlinearity ±1/2LSB (binary) and ±1/4LSB (BCD), maximum „ Differential nonlinearity ±3/4LSB (binary) and ±1/4LSB (BCD), maximum „ High-reliability QL versions available INPUT/OUTPUT CONNECTIONS PIN FUNCTION PIN 1 BIT 1 (MSB) 24 2 BIT 2 23 3 BIT 3 22 4 BIT 4 21 5 BIT 5 20 6 BIT 6 19 7 BIT 7 18 8 BIT 8 17 9 BIT 9 16 10 BIT 10 15 11 BIT 11 14 12 BIT 12 (LSB) 13 FUNCTION REFERENCE OUT GAIN ADJUST +15V SUPPLY GROUND CURRENT OUTPUT 20V RANGE 10V RANGE BIPOLAR OFFSET REFERENCE IN VOLTAGE OUTPUT –15V SUPPLY NO CON
