MBR7535RL - LOW VF SCHOTTKY DIODE MODULE

Download the MBR7535RL datasheet PDF. This datasheet also covers the MBR7535L variant, as both devices belong to the same low vf schottky diode module family and are provided as variant models within a single manufacturer datasheet.

Features

  • High Surge Capability 75Amp Recti er 35Volts Maximum Ratings Operating Temperature: -40 C to +100 Storage Temperature: -40 C to +150 DO-5 M Part Number MBR7535(R)L Maximum Recurrent Peak Reverse Voltage 35V Maximum RMS Voltage 25V Maximum DC Blocking Voltage 35V P A Electrical Character istics @ 25 Unless Otherwise Specified Average Forward Current (Per pkg) Peak Forward Surge Current IF(AV) IFSM 75A TC=100 1000A 8.3ms , half sine Maximum Instantaneous Forward Voltage VF 0.60V.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MBR7535L-DACOSEMICONDUCTOR.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MBR7535RL
Manufacturer DACO SEMICONDUCTOR
File Size 777.69 KB
Description LOW VF SCHOTTKY DIODE MODULE
Datasheet download datasheet MBR7535RL Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBR7535R (MBR7520 - MBR75100R) SCHOTTKY DIODES TRANSYS
MBR7535R (MBR7520 - MBR7540R) Schottky Power Diode Naina Semiconductor
MBR7535R Silicon Power Schottky Diode America Semiconductor
MBR7535R Silicon Power Schottky Diode GeneSiC
MBR7535 SCHOTTKY RECTIFIER International Rectifier

Other Datasheets by DACO SEMICONDUCTOR

Part Number Description
MBR7535L LOW VF SCHOTTKY DIODE MODULE
MBR80100 SCHOTTKY DIODE MODULE
MBR80100R SCHOTTKY DIODE MODULE
MBR8020 SCHOTTKY DIODE MODULE
MBR8020R SCHOTTKY DIODE MODULE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

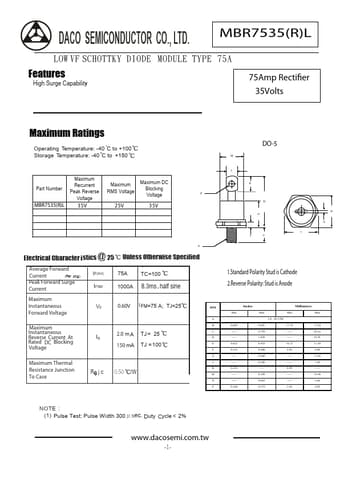

DACO SEMICONDUCTOR CO., LTD. MBR7535(R)L LOW VF SCHOTTKY DIODE MODULE TYPE 75A Features High Surge Capability 75Amp Recti er 35Volts Maximum Ratings Operating Temperature: -40 C to +100 Storage Temperature: -40 C to +150 DO-5 M Part Number MBR7535(R)L Maximum Recurrent Peak Reverse Voltage 35V Maximum RMS Voltage 25V Maximum DC Blocking Voltage 35V P A Electrical Character istics @ 25 Unless Otherwise Specified Average Forward Current (Per pkg) Peak Forward Surge Current IF(AV) IFSM 75A TC=100 1000A 8.3ms , half sine Maximum Instantaneous Forward Voltage VF 0.60V IFM=75 A; TJ=25 Maximum IRRneastvteeadrnsteDanCCeuoBrurloesncktinAgt Voltage IR 2.
