DL0504S2-T6B0 - 4-Line Ulta Low Capacitance TVS Array

Product Overview

Datasheet Details

Part number	DL0504S2-T6B0
Manufacturer	D-first
File Size	1.43 MB
Description	4-Line Ulta Low Capacitance TVS Array
Datasheet	DL0504S2-T6B0 Datasheet
Note	This datasheet PDF includes multiple part numbers: DL0504S2-T6B0, DL0504S2-T6B0-D. Please refer to the document for exact specifications by model.

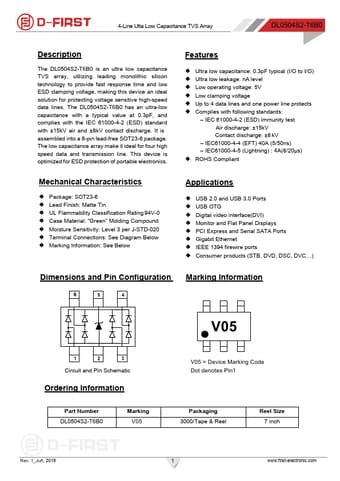

Additional preview pages of the DL0504S2-T6B0 datasheet.

Product details

Description

The DL0504S2-T6B0 is an ultra low capacitance TVS array, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive high-speed data lines.

Features

Ultra low capacitance: 0.3pF typical (I/O to I/O).
Ultra low leakage: nA level.
Low operating voltage: 5V.
Low clamping voltage.
Up to 4 data lines and one power line protects.
Complies with following standards:.
IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8 kV.
IEC61000-4-4 (EFT) 40A (5/50ns).
IEC61000-4-5 (Lightning) : 4A(8/20μs).
ROHS Compliant Mechanical Characteristics.
Package: SOT23-6.
